Installing Cover For Drive Belt

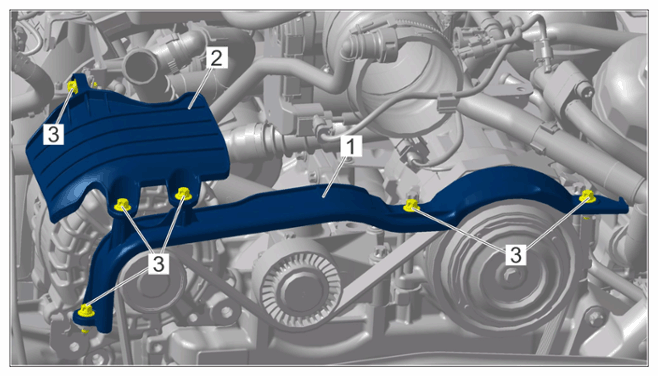

  1. Fit covers -1 and 2-  and secure with screws -3-.

    > Tightening torque 10 Nm (7.5 ftlb.)

    G15484731Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Covers on drive belt and generator
