Installing TENSIONING Roller

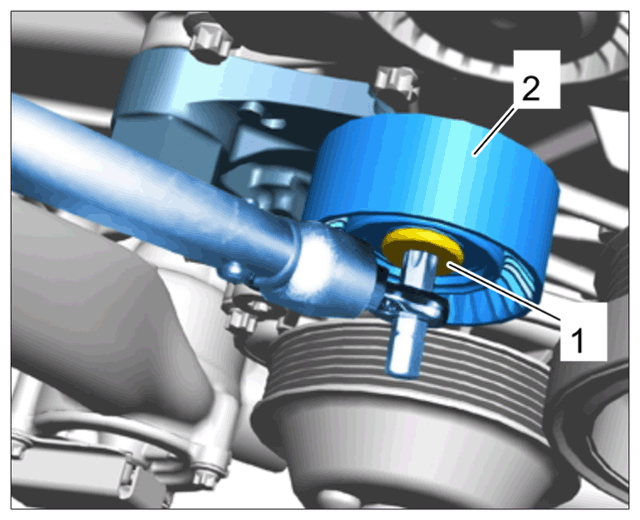

  1. Fit tensioning roller -2-  with screw.

    Tighten screw -1-  using the specified tool.

    > Tightening torque 45 Nm (33 ftlb.)

    G15484729Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw for tensioning roller

  2. Install protection cap.
  3. Fit and tension the drive belt.

    > 137801 CHECKING DRIVE BELT
