Removing Deflection Roller

  1. Relieve the drive belt.

    > 137855 REPLACING DRIVE BELT

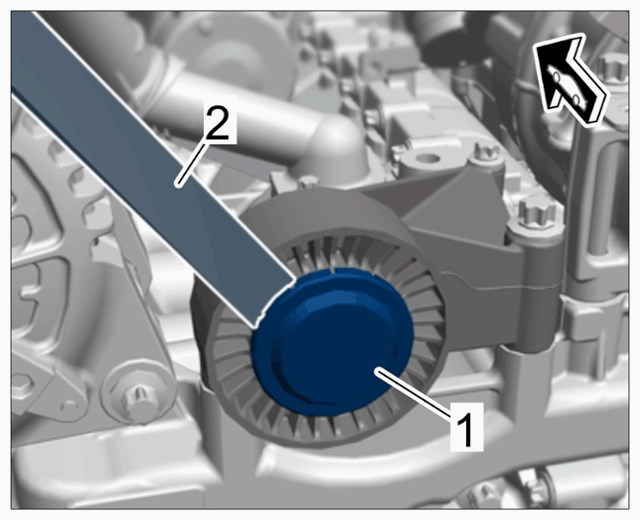

  2. Remove protection cap -1-  using a plastic wedge -2-  .
    G15484682Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Protection cap on deflection roller

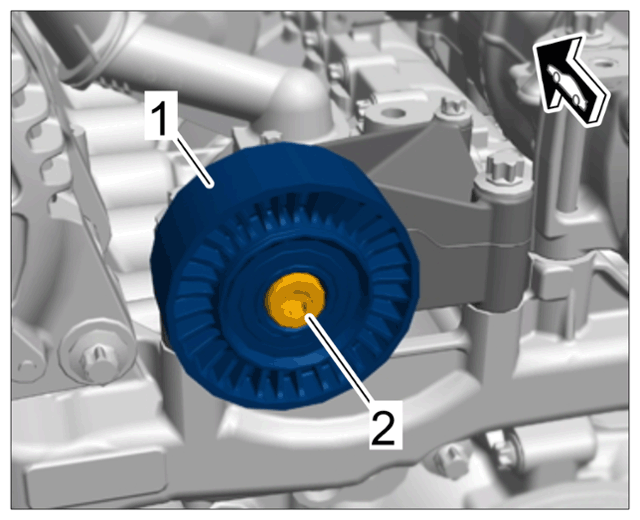

  3. Unscrew M10 screw -2-  and remove deflection roller -1-  .
    G15484683Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Deflection roller with screw

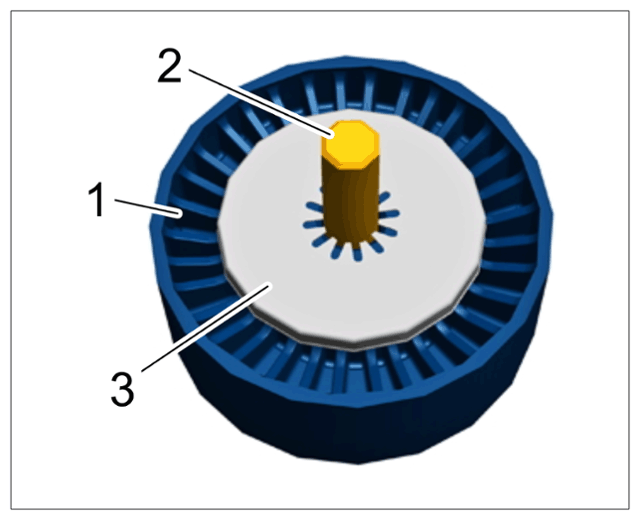

  4. Remove screw -2-  on the deflection roller -1-  . To do this, hold the lock washer -3-  securely at the back.
    G15484684Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw and lock washer for deflection roller
