Installing Deflection Roller

  1. If necessary, pre-fit screw and lick nut on the deflection roller.
  2. Secure the deflection roller -1-  to the console using an M10 screw -2-  .

    > Tightening torque 45 Nm (33 ftlb.)

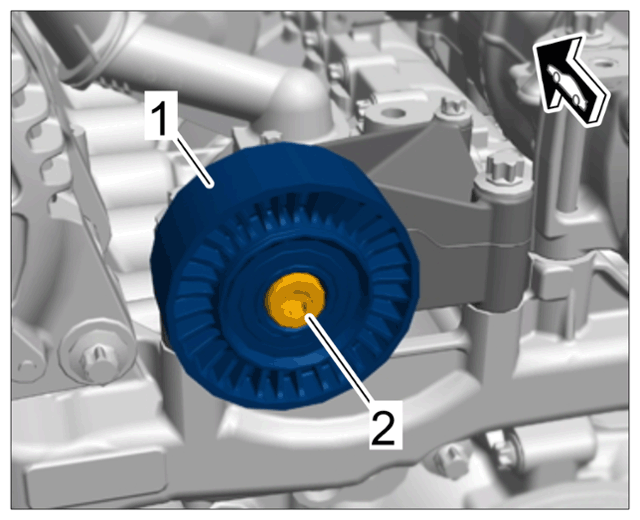

    G15484685Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Deflection roller with screw

  3. Install protection cap.
  4. Secure the drive belt.

    > 137855 REPLACING DRIVE BELT
