WM, 131020 Removing And Installing Pistons: Tools

Tool denomination	Type	Tool number	Image
Retaining device	Special tool	> 9778	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Piston receiving element	Special tool	> 9778/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

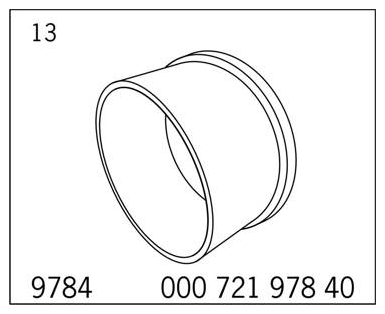

Funnel	Special tool	> 9784/4	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

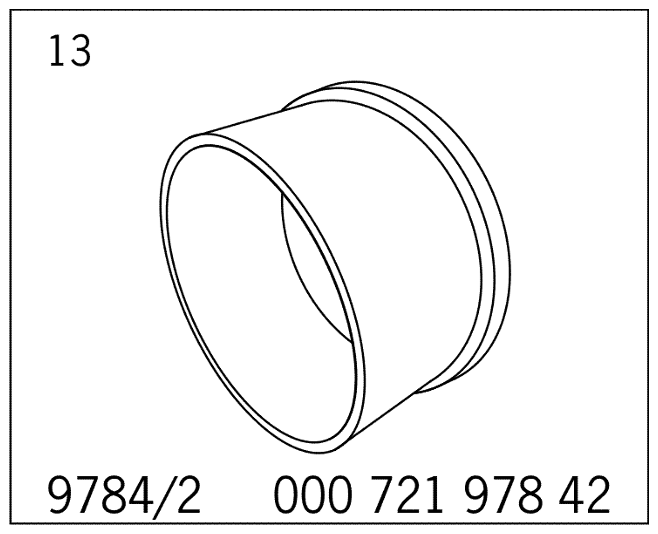

funnel	Special tool	> 9784/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Piston assembly aid	Special tool	> 9787/4	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
piston assembly aid	Special tool	> 9787/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
assembly aid	Special tool	> 9598	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disassembly tool	Special tool	> 9764	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disassembly tool	Special tool	> 9777	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Assembly tool	Special tool	> 9776	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Centering mandrel	Special tool	> 9782	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Assembly aid	Special tool	> 9783	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
assembly aid	Special tool	> 9795	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
locating pin	Special tool	> 9595/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mounting parts	Special tool	> 9590	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hot-Air Blower	Vehicle-specific service equipment	> VAS 1978/14A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

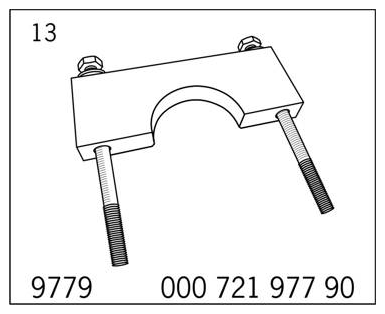

Holding bridge	Special tool	> 9779	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

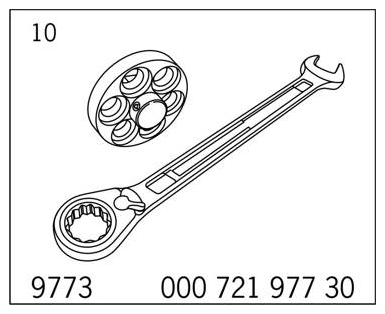

turning device	Special tool	> 9773	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

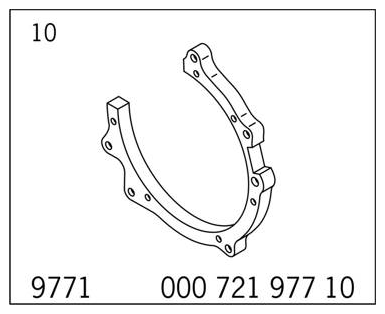

engine adapter	Special tool	> 9771	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Funnel	Special tool	> 9784	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
restraining straps	Special tool	> P221	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

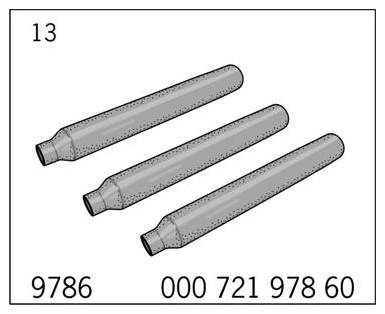

protective sleeve	Special tool	> 9786	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

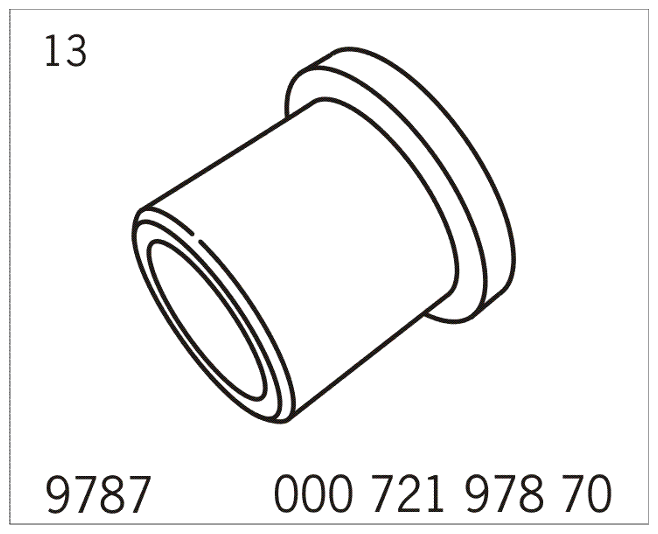

Piston assembly aid	Special tool	> 9787	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

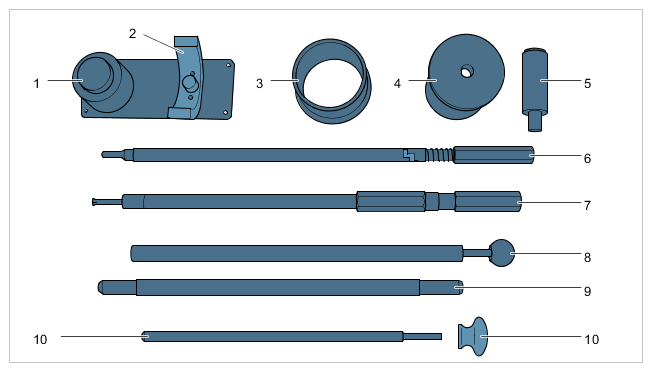

Special tools for engine disassembly

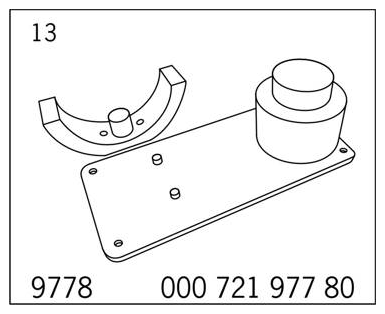

> 9778 - Retaining device

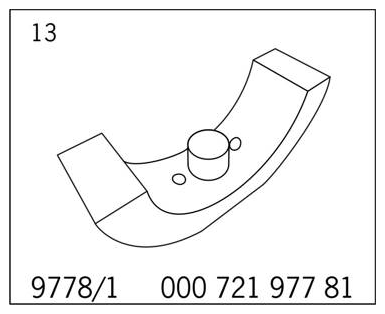

> 9778/1 - Piston receiving element
> 9784/4 - Funnel for pistons with diameter of 91 mm or > 9784/2 - funnel for pistons with diameter of 102 mm

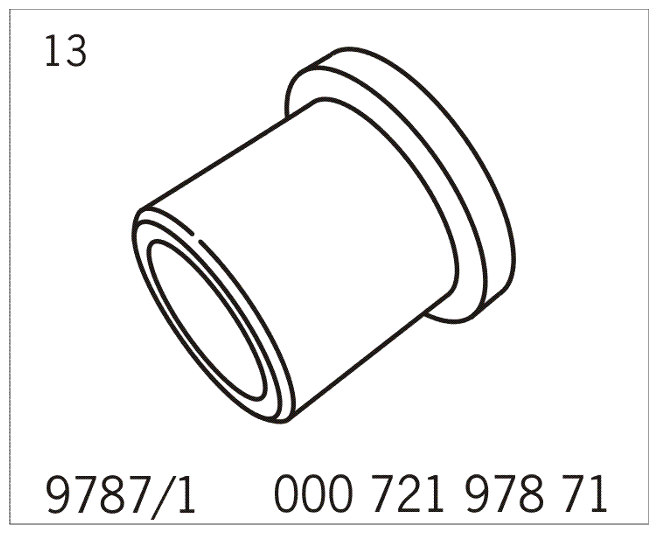

> 9787/4 - Piston assembly aid for pistons with diameter of 91 mm or > 9787/1 - piston assembly aid for pistons with diameter of 102 mm
Handle for > 9598 - assembly aid .

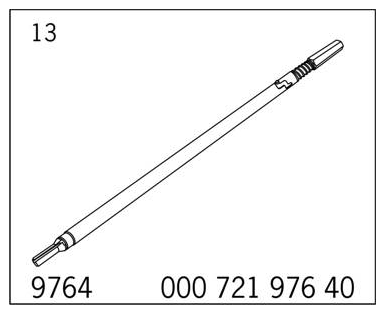

> 9764 - Disassembly tool for piston-pin circlips

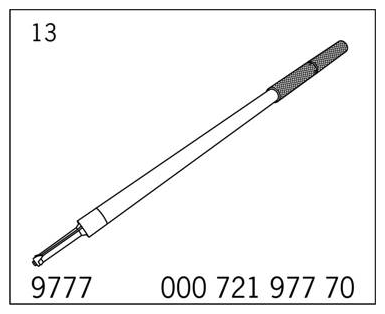

> 9777 - Disassembly tool and assembly tool for piston pins

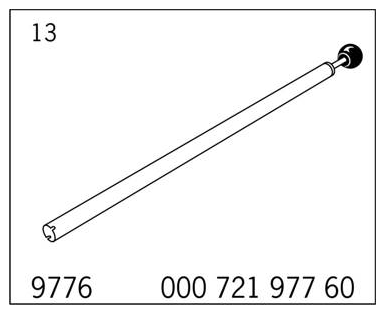

> 9776 - Assembly tool for piston-pin circlips

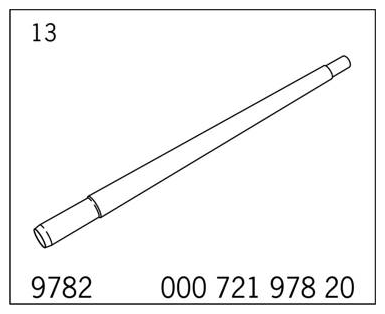

> 9782 - Centering mandrel for connecting rods and pistons, piston pin diameter: 22 mm and 23 mm

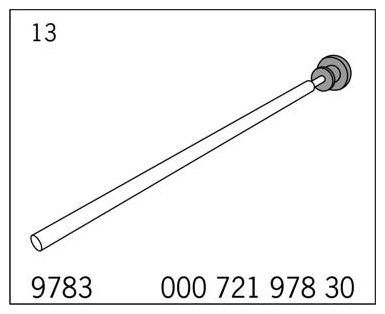

> 9783 - Assembly aid for pressing out pistons (cylinders 1 to 3) and connecting rods with pistons (cylinders 4 to 6).

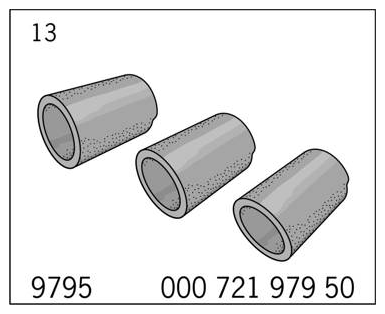

see Rubber sleeves, > 9795 - assembly aid for protecting cylinder linings (fitted on connecting rods for cylinders 1 to figure 3)
