Subsequent Work

  1. Install oil pump.

    > Removing and installing oil pump

  2. Install the oil pan.

    > Removing and installing oil pan

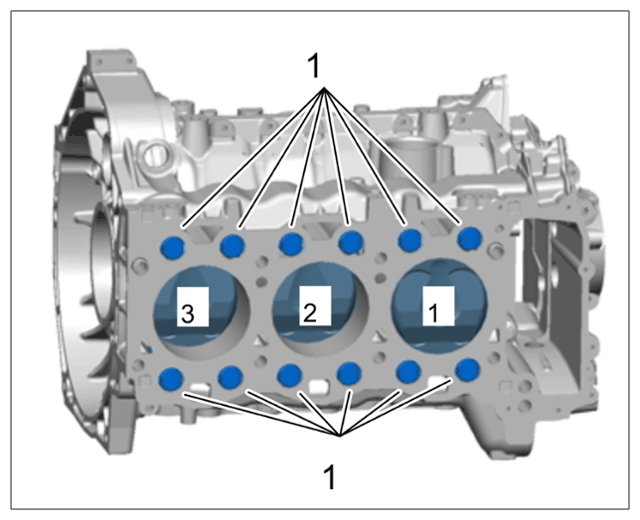

  3. Insert displacement bodies -1-  on cylinder bank 1 - 3.
    G15484629Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Displacement bodies on cylinder bank 1-3

  4. Install cylinder head.

    157019 REMOVING AND INSTALLING CYLINDER HEAD
