Preliminary Work

  1. Remove cylinder head.

    157019 REMOVING AND INSTALLING CYLINDER HEAD

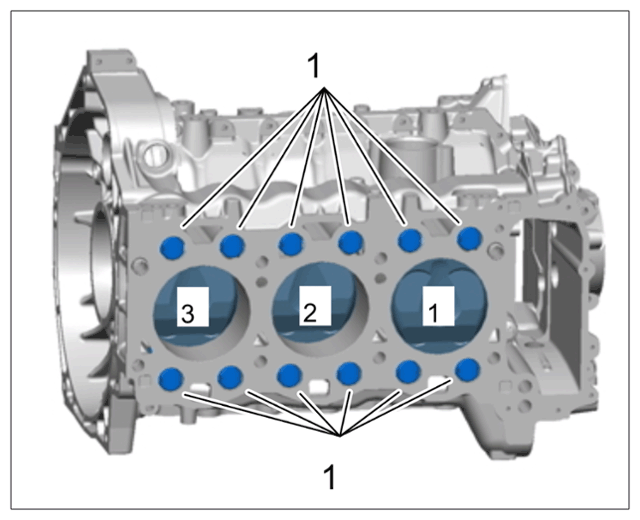

  2. Pull out displacement bodies -1-  on crankcase half for cylinder bank 1-3 using a pair of flat-nosed pliers.
    G15484522Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Displacement bodies on cylinder bank 1-3

  3. Remove oil pan.

    > Removing and installing oil pan

  4. Remove oil pump.

    > Removing and installing oil pump

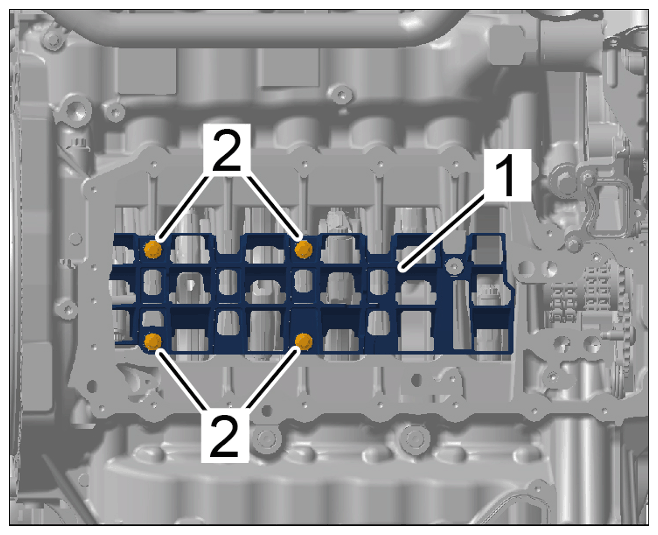

  5. Unscrew oil windage tray screws -2-  and remove oil windage tray -1-  .
    G15484523Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil guide (oil plate)

  6. Turn the engine until cylinder bank 1-3 faces upwards.
