Component Information

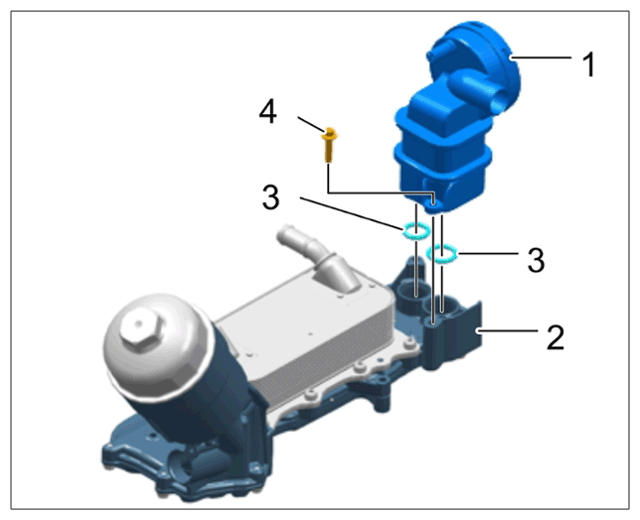

Fig 1: Overview Of Oil Separator On Oil Cooler Bracket Components Location
G15484496Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of oil separator on oil cooler bracket

1  Oil separator
2  Bracket for oil/water heat exchanger
3  O-rings (replace and grease)
4  M6 screws
