Removing Positive Crankcase Ventilation Hose

  1. Remove positive crankcase ventilation hose -1-  .

    Release and disconnect connection -2-  on the pressure pipe.

    Release and disconnect connection -3-  on the oil separator.

    Release and disconnect connection -4-  on the centre intake-air distributor.

    Feed out positive crankcase ventilation hose -1-  .

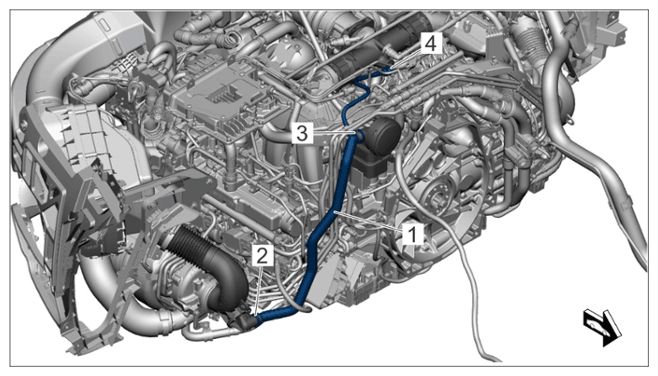

    G15484494Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front positive crankcase ventilation hose
