Removing Control Unit For Active Drivetrain Mounts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

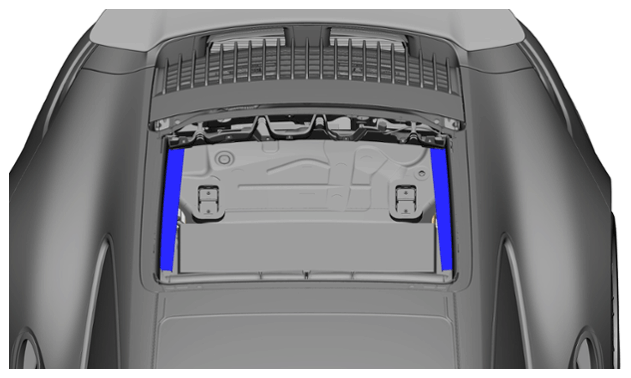

Covers at the sides

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

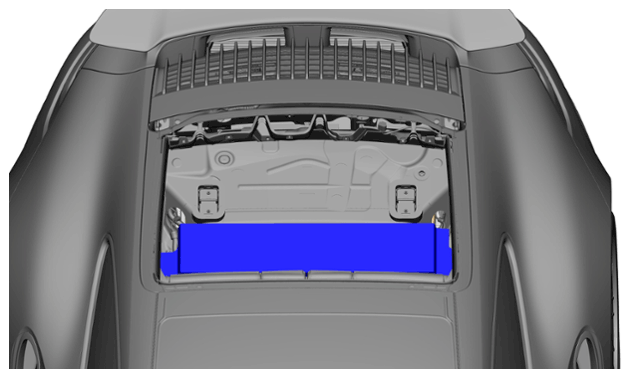

Front cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

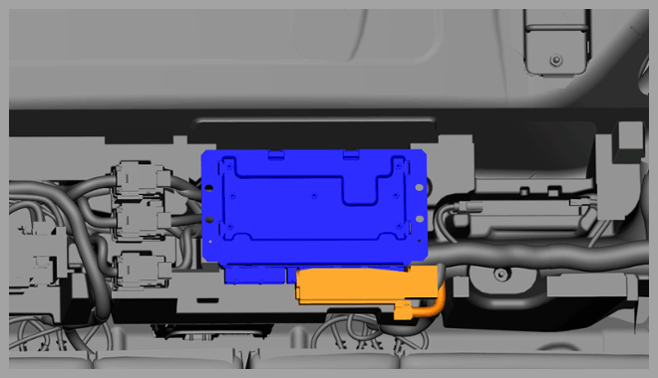

Control unit for active unit mount

Lift active unit mount control unit until the electric plug connection is accessible.

Release and disconnect electric plug connection.
