Preliminary Work

  1. Lower the engine by 90 to 100 mm.

    >  WM, 100119 REMOVING AND INSTALLING ENGINE

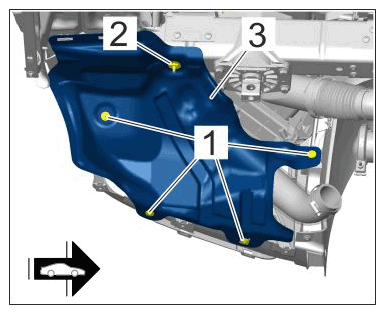

  2. Remove heat shield -3-  on the rear bracket.

    Unscrew screws -1-  and nut -2-  and remove heat shield -3-  .

    G15484482Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on rear bracket (left side)
