Installing Engine Mounting

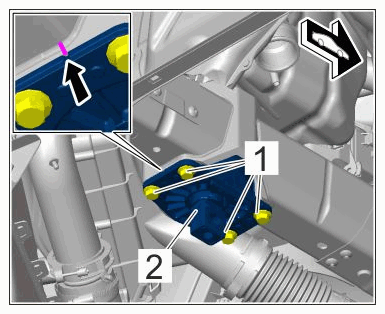

Install engine mount -2- .
Position engine mount -2- and fit screws -1- by hand.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mount

Tighten engine mount.

> Initial tightening 16 Nm (12 ftlb.)

> Final tightening + 30°

Information

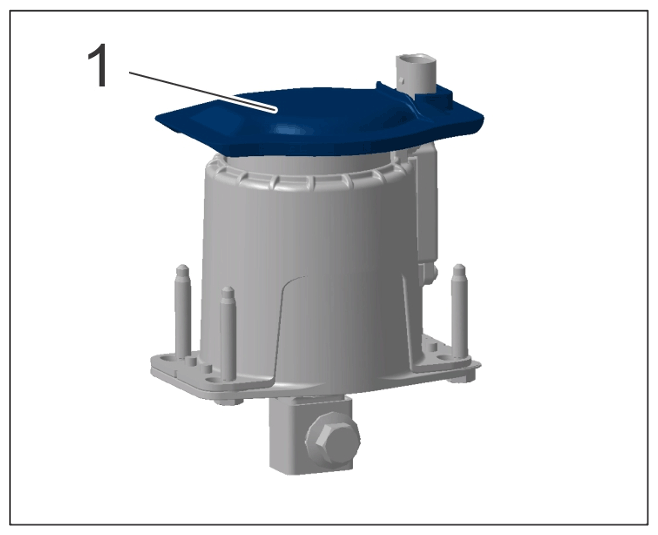

If caps -1- are not yet fitted, fit new caps on both engine mounts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cap on engine mount

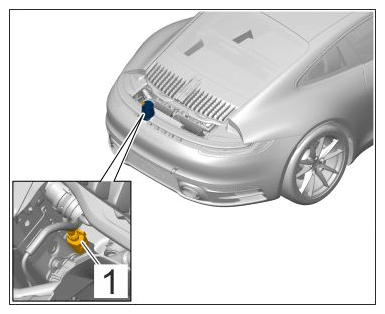

Only for vehicles with PADM:
Plug in cable plug -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plug for PADM engine mount
