Removing Engine-Compartment Blower
WARNING:
Moving components
- Danger of limbs being trapped or severed
→ Do not reach into the danger area.
→ Secure the system to prevent it from being activated accidentally.
→ Keep third parties away from the danger area.

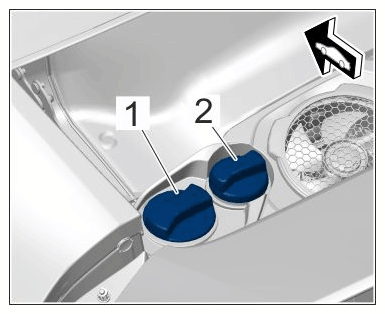

- Unscrew cap on coolant reservoir -1 and oil filler neck -2-
.
Cover on oil filler neck and coolant

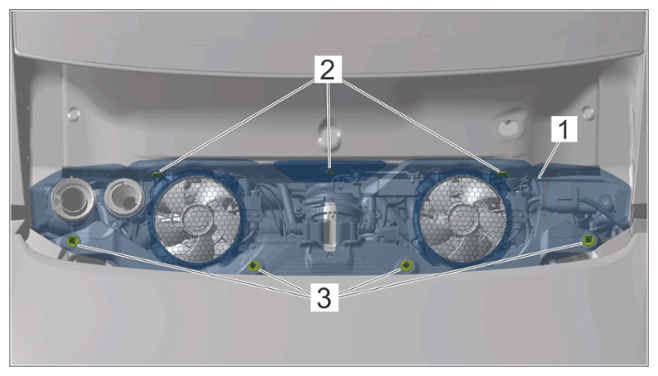

- Carefully remove cover -1-
on engine-compartment blower.
Carefully unclip cover from the rubber sleeves at the front -2- and rear -3- .
Engine-compartment blower cover
- Tighten cap on the oil filler neck and coolant reservoir.
Information
- Temperature changes can cause the engine-compartment blower to start up at any time (protection against overheating).

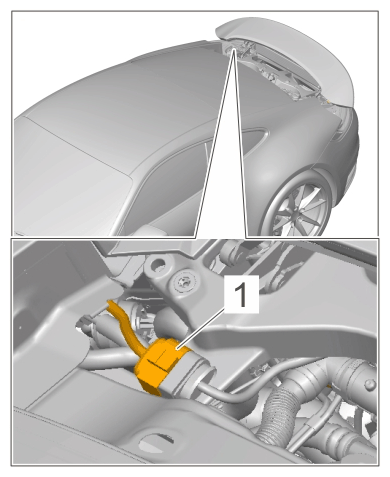

- Always disconnect the plug connection at the rear spoiler bracket before removal.
- Release and disconnect central connector -1-
.
Electric plug connection

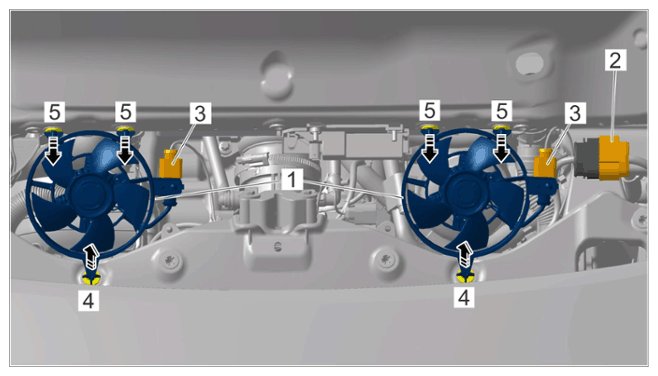

- Remove engine-compartment blower at the left and right -1-
.
Make sure that the central connector -2- is disconnected.
Disconnect cable plug -3- for engine-compartment blower.
Pull engine-compartment blower out of the rubber sleeves at the rear -arrow 4- first, then at the front -arrows 5- .
Remove engine-compartment blower.
Engine-compartment blower at the left and right
