Installing Engine-Compartment Blower
WARNING:
Moving components
- Danger of limbs being trapped or severed
→ Do not reach into the danger area.
→ Secure the system to prevent it from being activated accidentally.
→ Keep third parties away from the danger area.
Information
Make sure that the rubber mountings are not crushed or damaged during installation.
- Coat rubber sleeves with assembly grease.

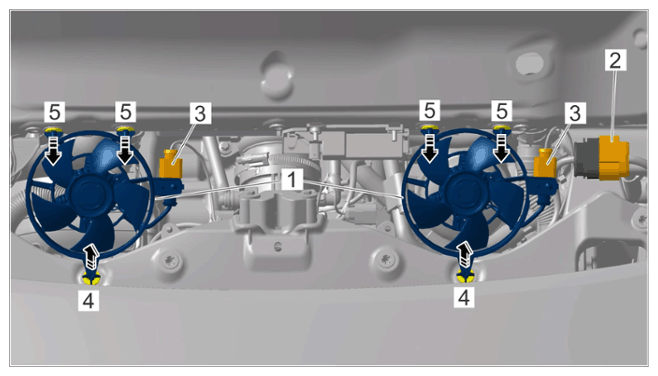

- Install engine-compartment blower -1-
at the left and right.
Clip in engine-compartment blower at the front -5- rubber sleeves, then at the rear -4- .
Connect cable plug -3- for engine-compartment blower.
Connect central connector -2- .
Engine-compartment blower at the left and right
- Position cover on engine-compartment blower and clip it in.

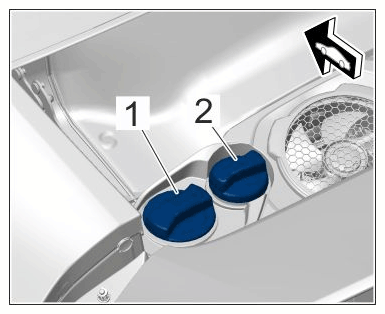

- Screw on cap on coolant reservoir -1-
and oil filler neck -2-
and check that it is seated securely.
Cover on oil filler neck and coolant
