Installing Middle Radiator

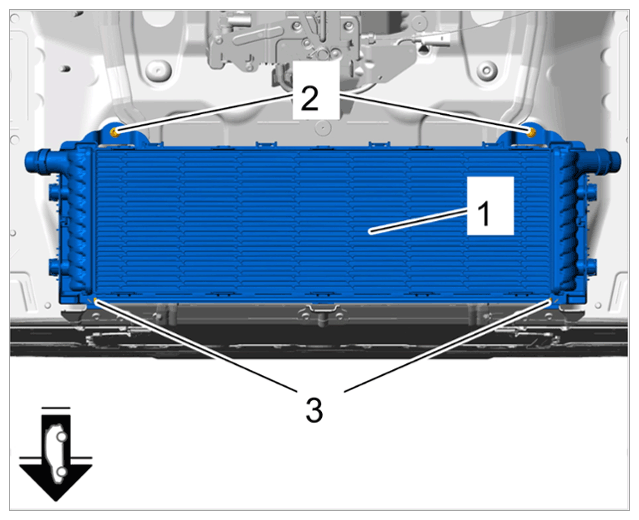

Position middle radiator -1-  .

Fit and tighten nuts -2-  and screws -3-  .

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Middle radiator

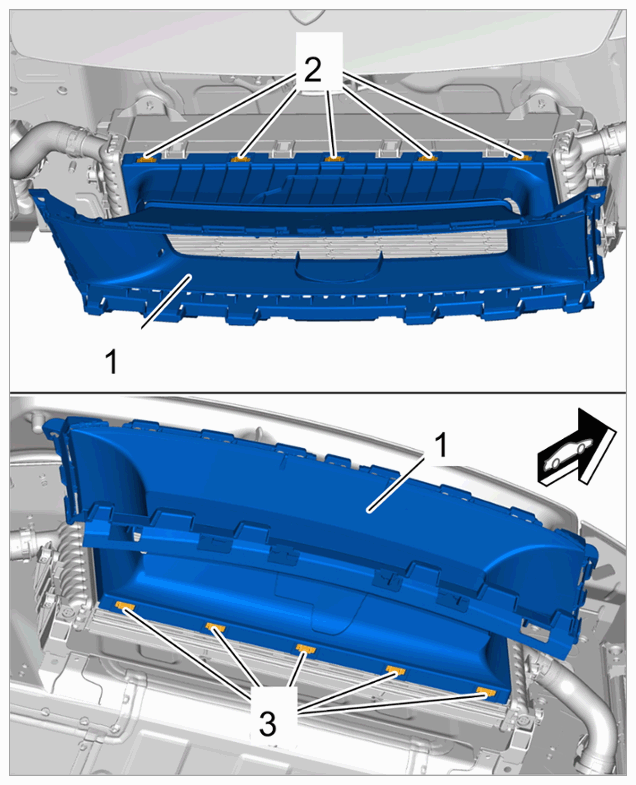

Position air guide for middle radiator -1-  .

Lock retaining lugs at the top -2-  and bottom -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide for middle radiator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

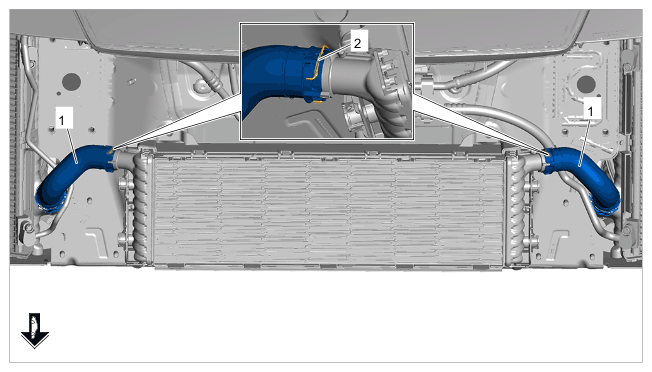

Coolant hose on middle radiator
