Removing Coolant Temperature Sensor

WARNING: Hot fluid
  • Danger of scalding

    → Let the fluid cool down.

    → Wear personal protective gear.

  1. Remove coolant temperature sensor -1-  .

    Release and disconnect cable plug -3-  .

    Unscrew screw -2-  .

    Pull off coolant temperature sensor -1-  and catch emerging coolant.

    Close off opening using a stopper.

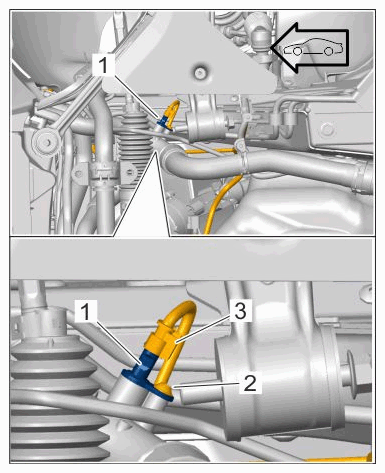

    G15485116Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant temperature sensor
