Installing Coolant Temperature Sensor

Replace O-ring.

Tighten screw -2-  .

Tightening torque: > Tightening torque 5 Nm (3.5 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

Push on cable plug -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

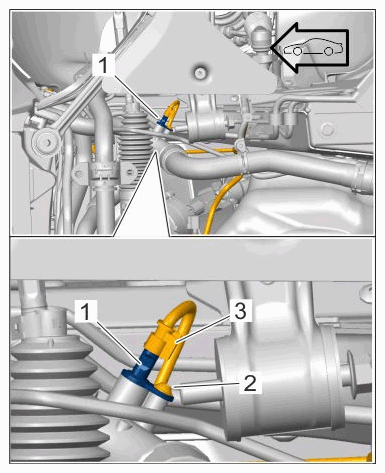

Coolant temperature sensor
