Remove rear right coolant pipe -1-
.Release holder -3-
and open it.
Unclip coolant pipe at rear right -1-
from holder -3-
.
Release retaining clip -4-
and detach rear right coolant pipe -1-
from coolant hose -2-
.
Collect escaping coolant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

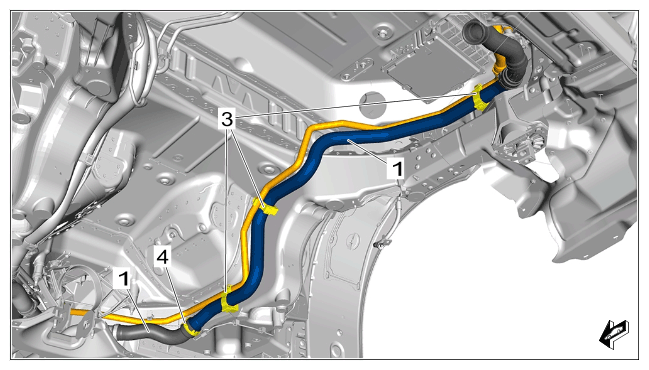

Rear right coolant pipe
