Removing Rear Coolant Pipe

WARNING: Hot fluid

Danger of scalding
→ Avoid contact with hot fluid.

→ Wear personal protective gear.

Remove rear left coolant pipe -1- .
Unclip vent line -3- from clips -4- .

Release holder -5- and open it.

Unclip coolant pipe at rear left from holders -5 and 6- .

Release retaining clip -7- and detach rear left coolant pipe -1- from coolant hose -2- .

Collect emerging coolant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

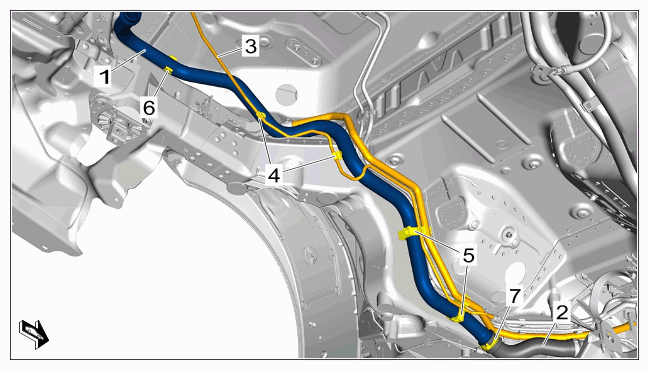

Rear left coolant pipe
