Install rear right coolant pipe -1-
.Position rear right coolant pipe -1-
.
Push rear right coolant pipe -1-
onto coolant hose -2-
and lock retaining clip -4-
.
Clip coolant pipe at rear right into holder -3-
.
Close and lock holder -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

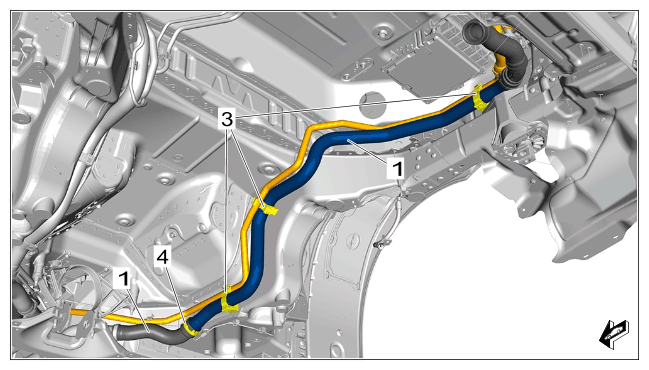

Rear right coolant pipe
