Installing Rear Coolant Pipe

Position rear left coolant pipe -1-  .

Push rear left coolant pipe -1-  onto coolant hose -2-  and lock retaining clip -7-  .

Clip coolant pipe at rear left -1-  into holders -5 and 6-  .

Close and lock holder -5-  .

Insert vent line into clips -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

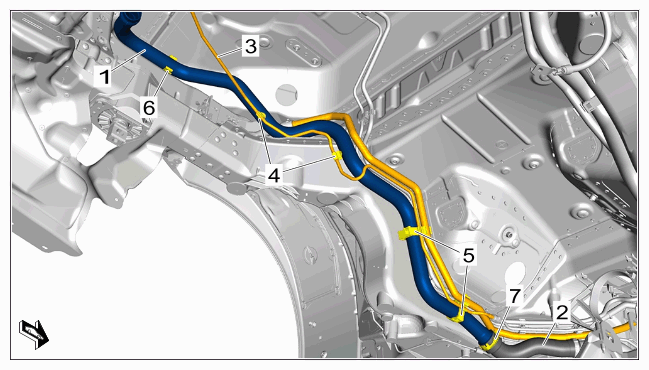

Rear left coolant pipe
