19 - Engine - Cooling 3.0L (Eng Code MDK.Ca) -- 992 - 911 CARRERA (992)
>>
WM, 196419 Removing And Installing Front Coolant Pipe
>>
Installation Position
Installation Position

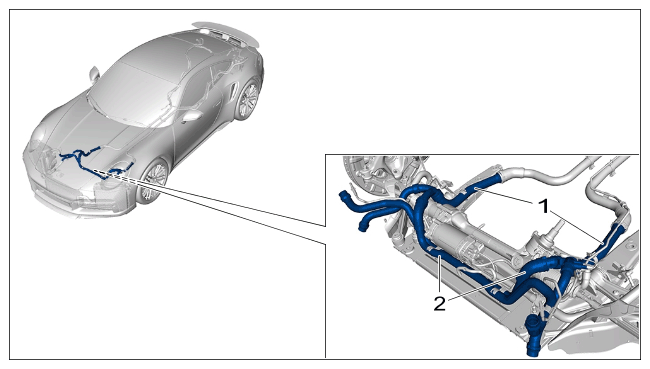

Fig 1: Front Coolant Pipe Components Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation position
1
Front coolant pipes
2
Front coolant pipes, centre
