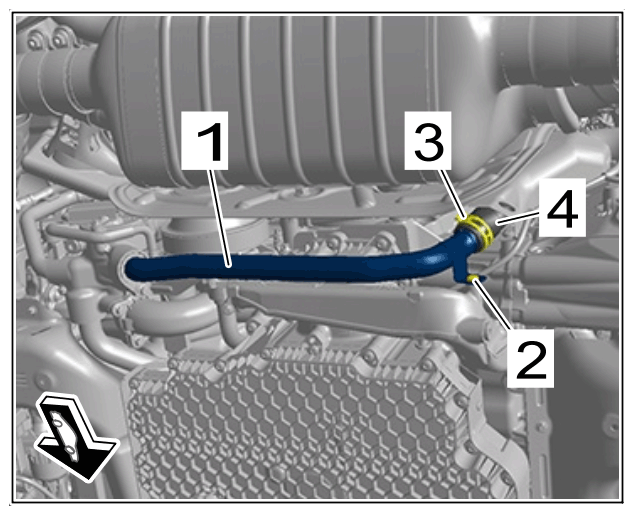

Remove coolant pipe -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Coolant pipe
Unscrew screw -2-
.
Loosen spring band clamp -3-
using > VAS 6890 - spring band clamps pliers
.
Pull off coolant hose -4-
.
Disconnect coolant pipe -1-
from coolant regulator housing.
Catch emerging coolant.
Close off line connections using suitable stoppers.
