Install coolant pipe -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Coolant pipe
Position coolant pipe -1-
with new
O-rings.

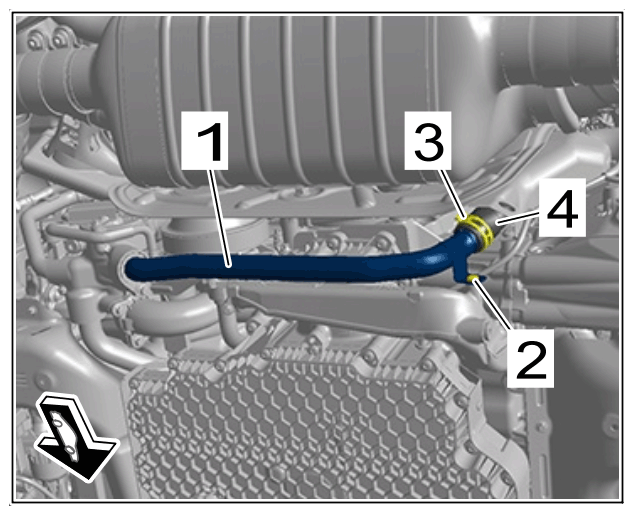

Push on coolant hose -4-
and tighten spring band clamp -3-
using > VAS 6890 - spring band clamp pliers
.
Screw in and tighten screw -2-
.
> Tightening torque 10 Nm (7.5 ftlb.)
