Installing Coolant Distributor Housing

WARNING: Caustic fluids

Danger of chemical burns
→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ Avoid contact with caustic fluid.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Information

Fit new O-rings and moulded seals.
Clean sealing points before Atting.
Coat O-rings and moulded seals with Kluber Plus Gel.

Installation is performed in reverse order to removal.
Tighten screws -2- .

> Tightening torque 33 Nm (24 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

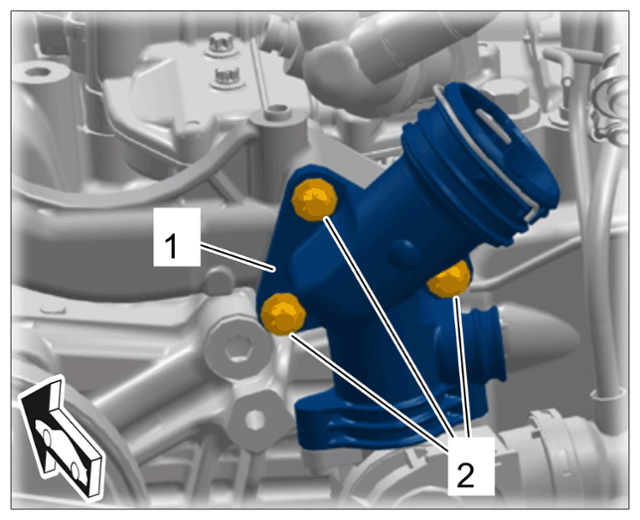

Coolant connection piece on distributor housing

Tighten screw -2- .

> Tightening torque 33 Nm (24 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for distributor housing

Tighten screws -1- .

> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Angled pipe

Tighten screws -1- .

> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for deflection roller

Tighten screws -2_- and -4- .

> Tightening torque 23 Nm (17 ftlb.)

> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

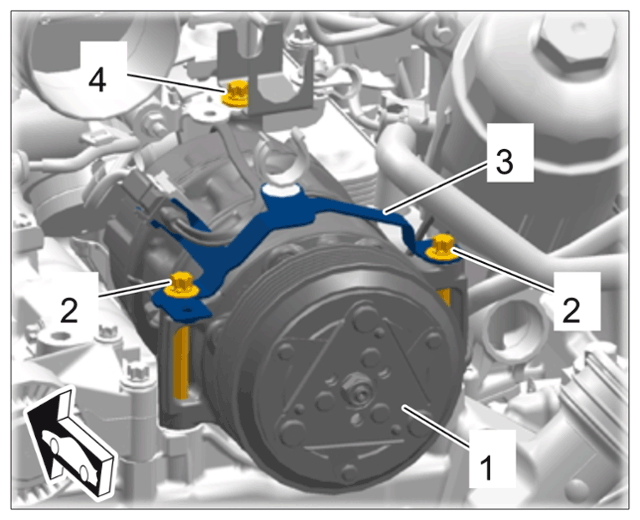

Air-conditioning compressor
