Removing Coolant Regulator Housing

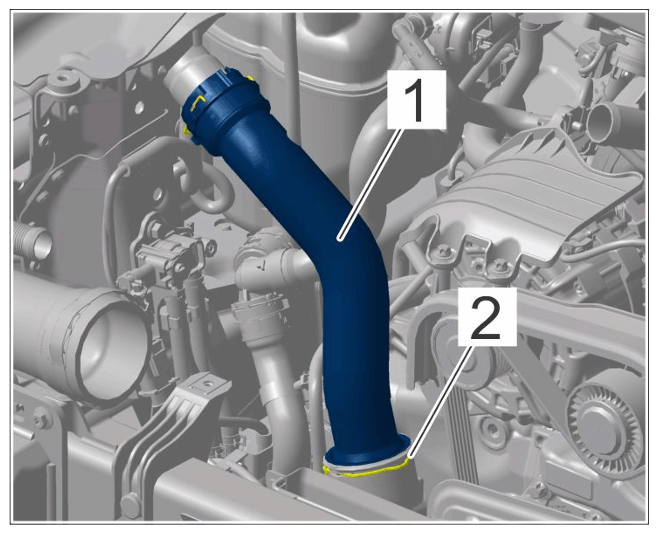

Disconnect coolant hose -1 at the left-hand side of the engine compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left coolant hose

Pull off spring clamp -2- .

Pull off coolant hose -1- .

Insert spring clamp -2- .

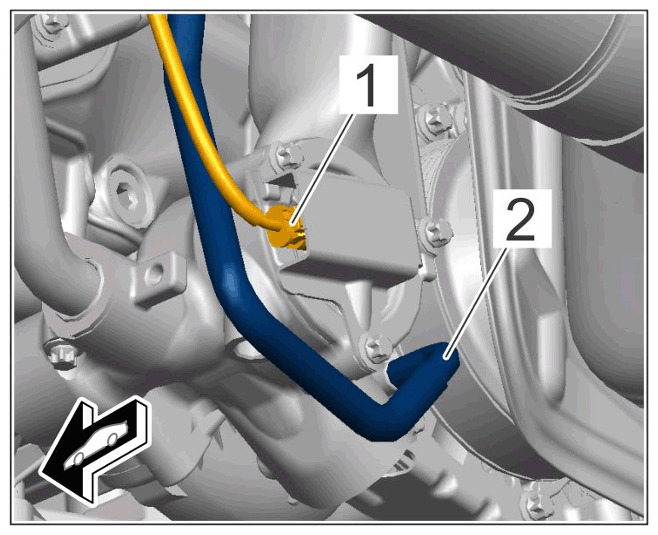

Disconnect cable plugs -1-2- and pull off vacuum line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plugs for coolant regulator and vacuum line on coolant pump

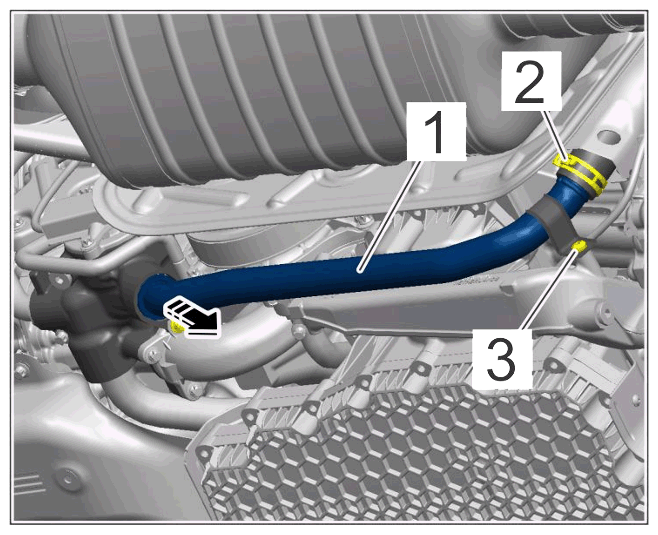

Remove coolant pipe -1- from the coolant regulator housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower coolant pipe

Open spring band clamp -2- and pull off coolant hose.

Unscrew screw -3- on the holder.

Pull coolant pipe off the coolant regulator housing -arrow- . Collect coolant in a clean container.

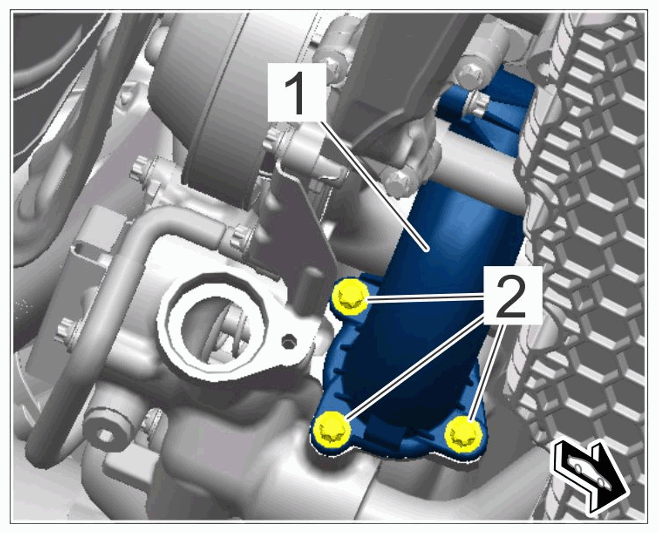

Unscrew screws -2- on the coolant pipe -1- for the coolant pump.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pipe connection on coolant regulator housing

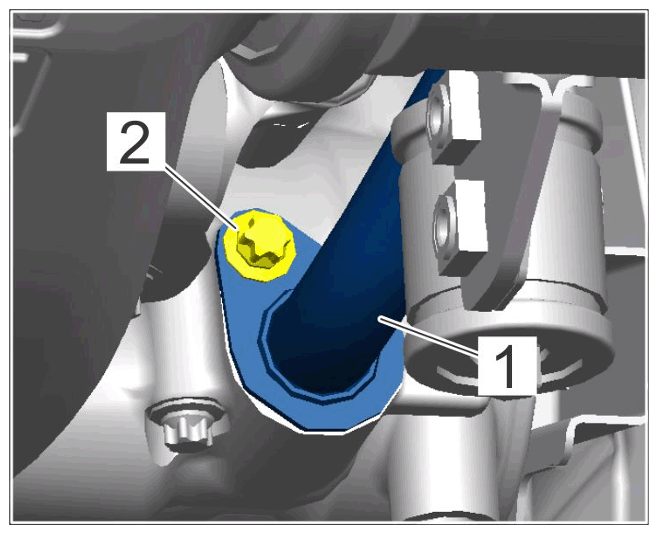

Unscrew screw -2- for coolant supply pipe -1- on the coolant regulator housing and pull off coolant pipe.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant supply pipe

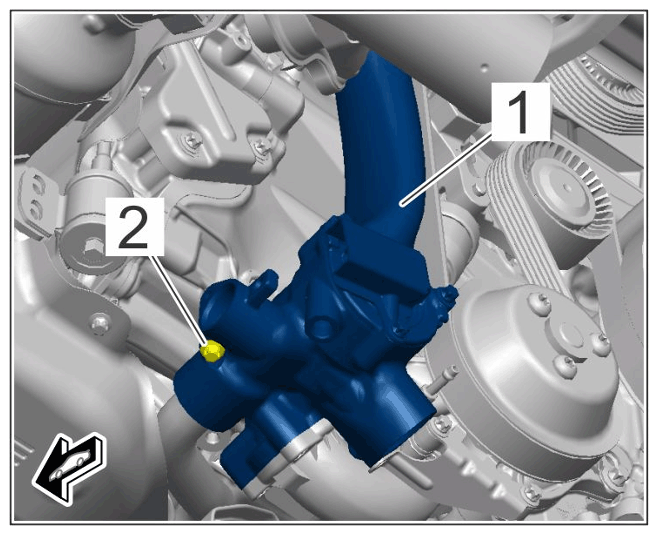

Unscrew screw -2- on coolant regulator housing -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on coolant regulator housing

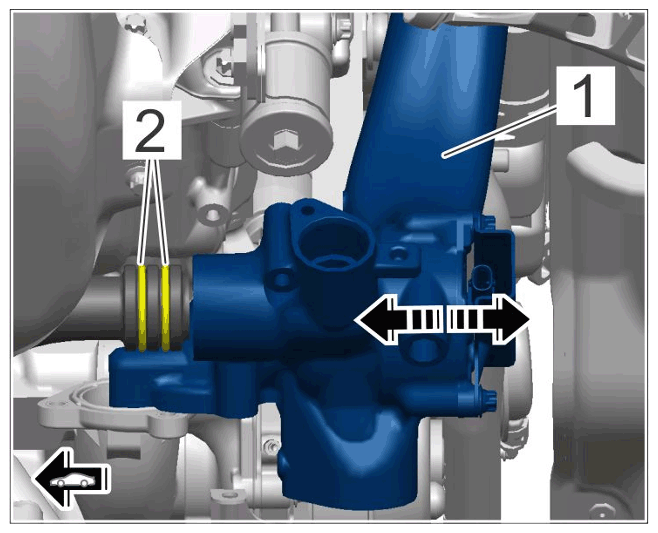

Pull coolant regulator housing -1- off the coolant pipe to the rear -right arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant regulator housing on coolant pipe

Replace O-rings -2- .

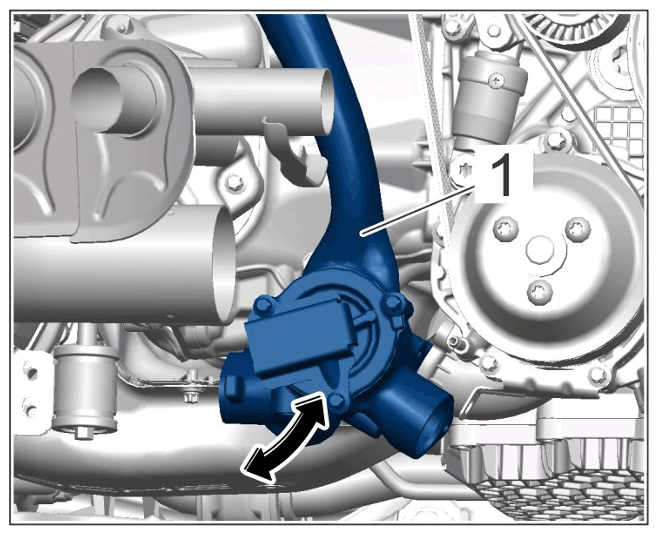

Remove coolant regulator housing -1- by pulling it downwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removal and installation direction
Replace all O-rings and seals.
Clean sealing surfaces.
