Removing Coolant Pump
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.
WARNING:
Caustic fluids
- Danger of chemical burns
→ Wear personal protective gear.
→ Ensure that there is good ventilation.
→ Avoid contact with caustic fluid.
→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

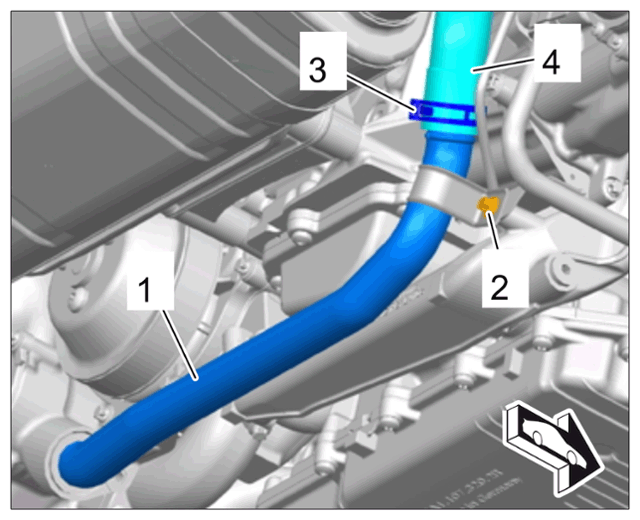

- Remove coolant pipe -1-
from the coolant regulator housing.
Collect emerging coolant in a clean container.
Unscrew screw -2- .
Loosen spring band clamp -3- .
Pull off coolant hose -4- .
Pull coolant pipe off the coolant regulator housing.
Lower coolant pipe
- Unscrew screw -2-

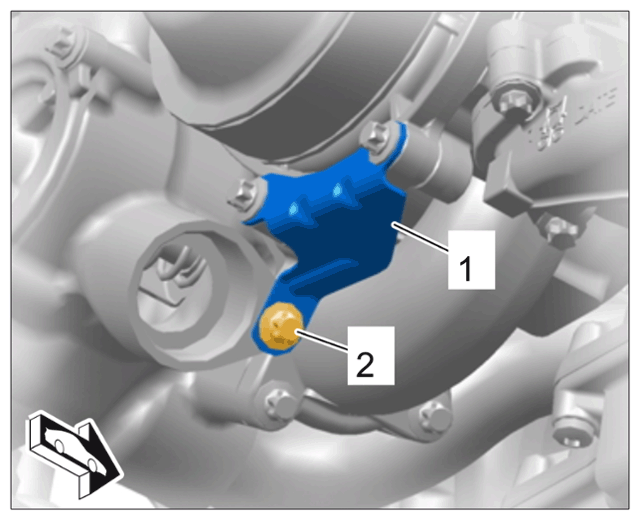

on the coolant pump holder -1-
.
Coolant pump holder

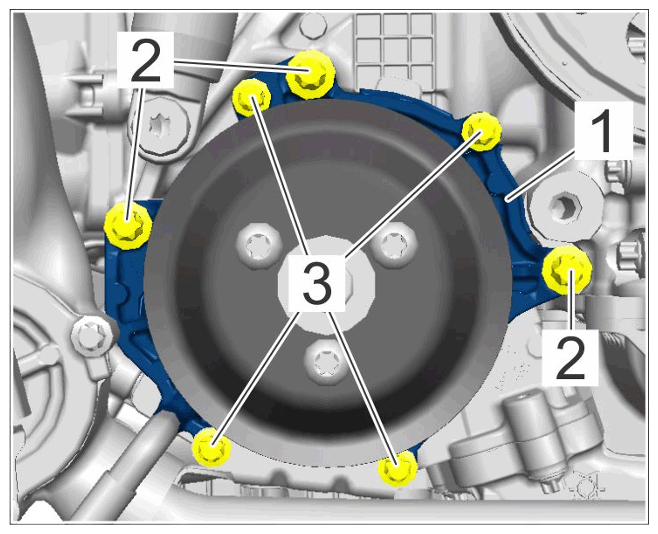

- Remove coolant pump -1-
with pulley.
Pull off the vacuum hose.
Unscrew M8 -2- and M6 screws -3- and remove coolant pump.
Coolant pump with pulley
- Replace seal and clean sealing faces.
