Removing Coolant Pump (With Housing)

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
> Secure components to prevent them from falling down.

WARNING: Caustic fluids

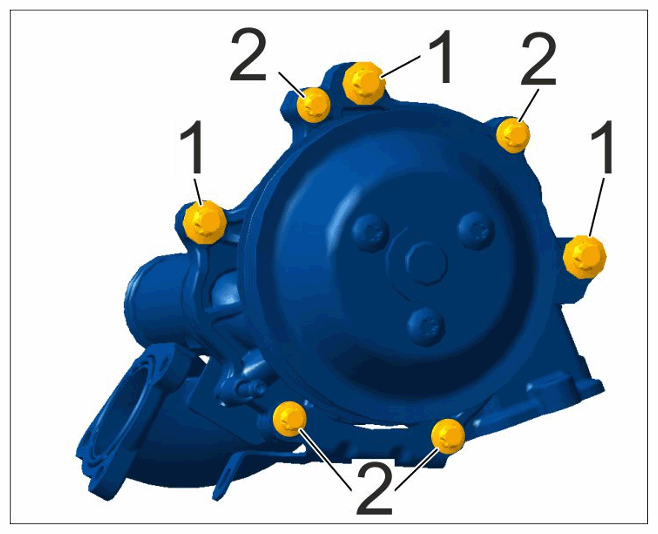

Coolant pump with housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump with housing

	Screw, M8 x 25 > Tightening torque 33 Nm (24 ftlb.)
2	Screw, M6 x 25 > Tightening torque 13 Nm (9.5 ftlb.)

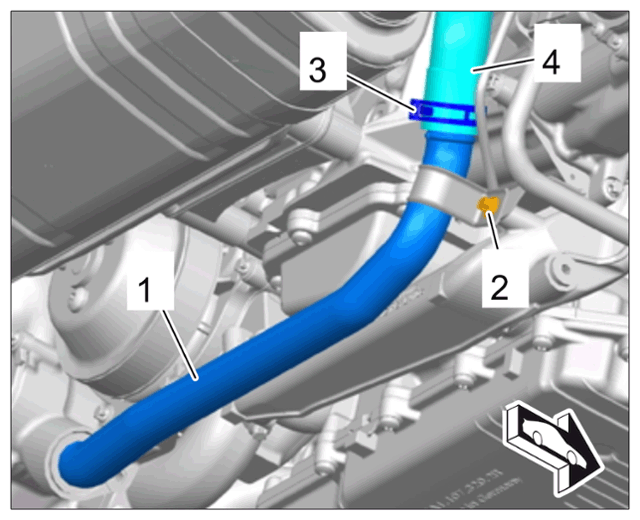

Remove coolant pipe -1- from the coolant regulator housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower coolant pipe

Collect emerging coolant in a clean container.

Unscrew screw -2- .

Loosen spring band clamp -3- .

Detach coolant hose -4- .

Pull coolant pipe -1- off the coolant regulator housing.

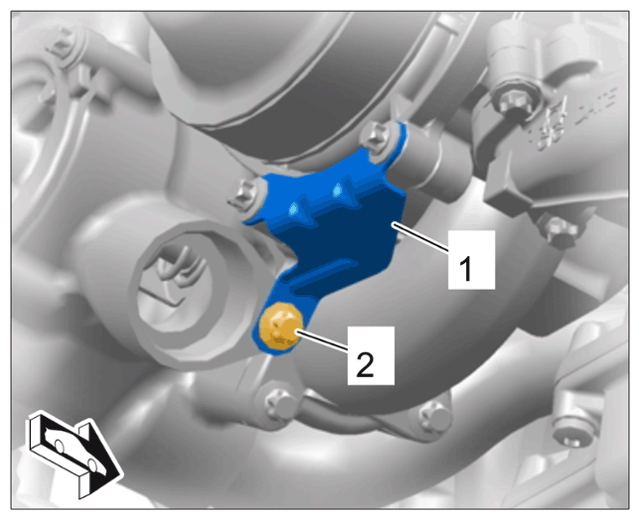

Unscrew screw -2- on the coolant pump holder -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump holder

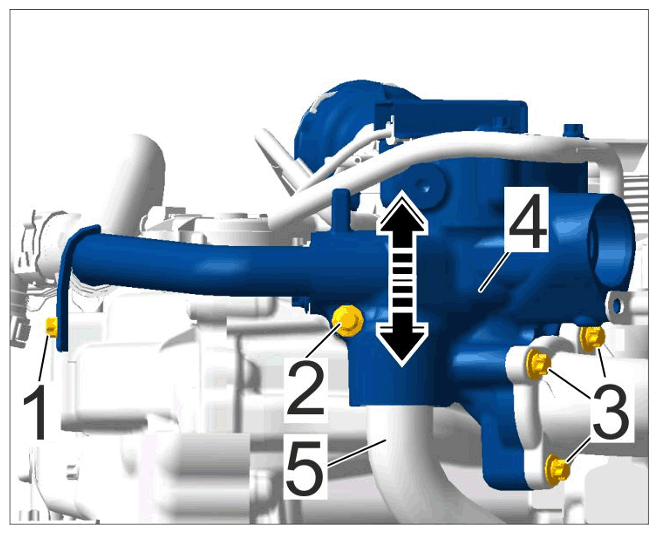

Loosen coolant regulator housing -4- .
Disconnect cable plug on coolant regulator.

Unscrew screws -1 to 3- and remove.

Have complete housing -4- off the coolant line -5- by pulling it -Arrow- and swivelling it to the side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant regulator housing

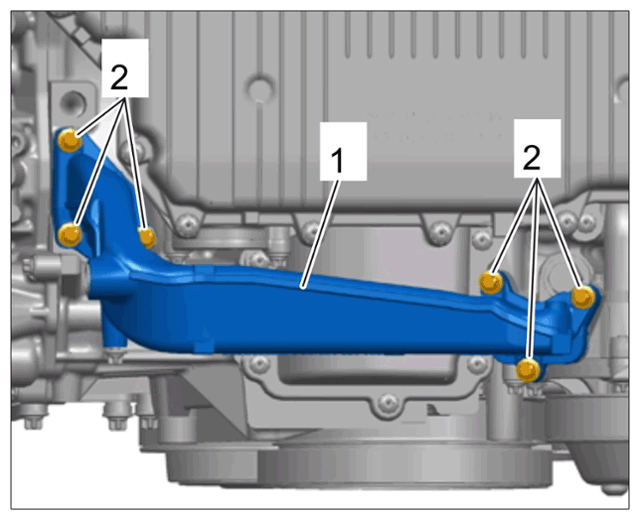

Remove coolant guide -1-
Unscrew screws -2- and remove coolant guide -1- .

Replace gaskets during installation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant guide

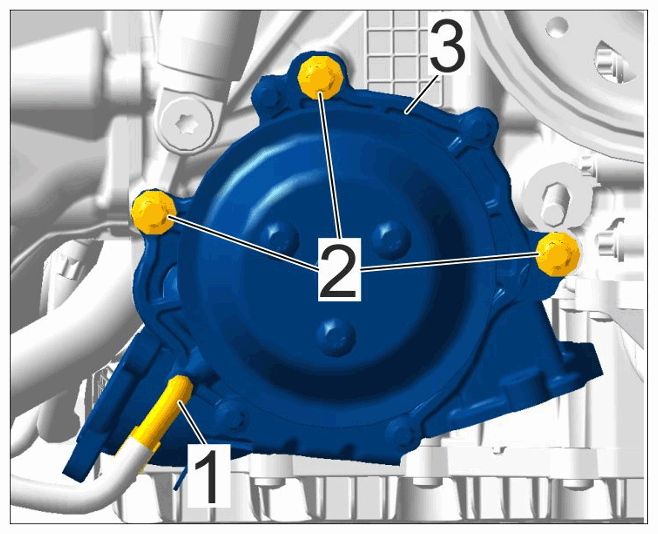

Remove coolant pump with housing -3- .
Pull off vacuum hose -1-

Unscrew screws -2- and pull off coolant pump -3- with housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump with housing
Replace gaskets and O-rings during installation, clean sealing surfaces.
