Installing Coolant Pump (With Housing)

Information

Replace O-rings on the coolant pipes.

Information

The coolant pump manufacturer supplies the coolant pump with housing (console) complete as a spare part and the coolant pump as an individual part.
If the component is damaged, replace the defective component (single part or module).
There is a separate description for the coolant pump as an individual part.

Information

Coat O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.305.39).

Coat new gaskets and O-rings with the specified lubricant.

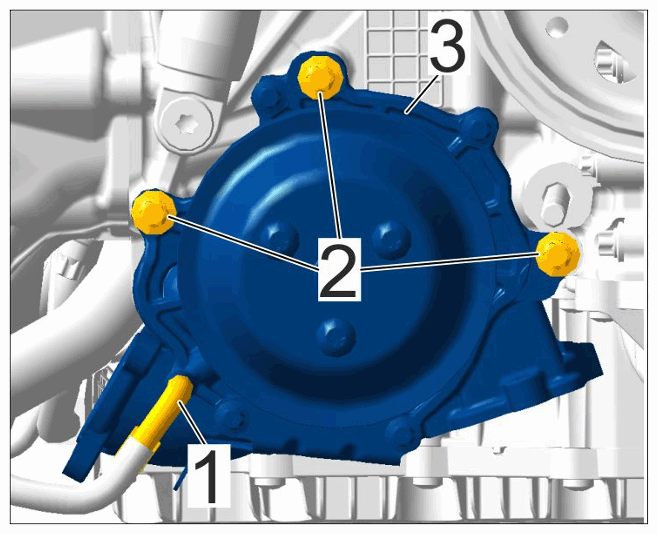

Install coolant pump with housing -3- .
Fit coolant pump -3- and fit and tighten screws -2- .

> Tightening torque 33 Nm (24 ftlb.)

Connect vacuum hose -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump with housing

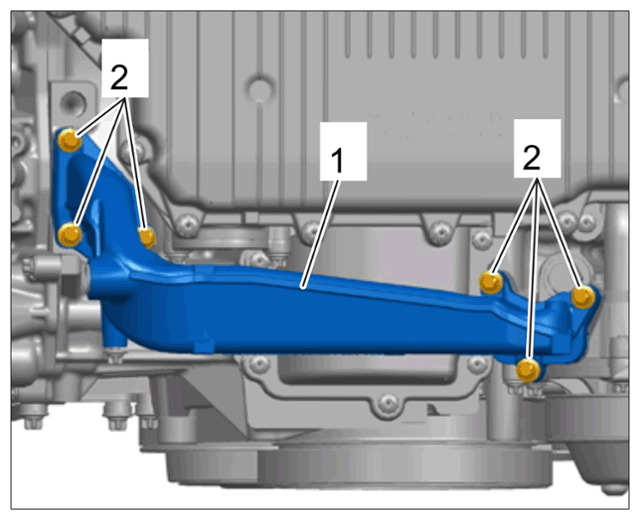

Install coolant guide with new gaskets.
Position coolant guide -1- and fit and tighten screws -2- .

> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant guide

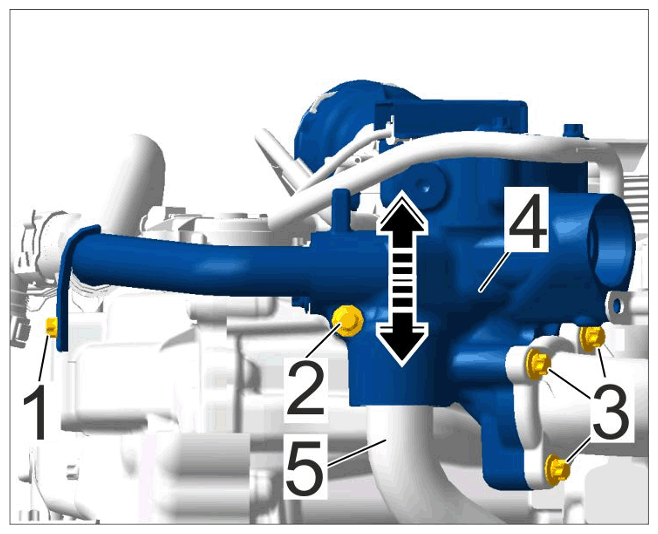

Secure coolant regulator housing -4- with new gaskets.
Complete housing -4- is to be placed onto the coolant line -5- and attached -Arrow- .

Fit and tighten screws -1 to 3- .

Screw -1- : > Tightening torque 10 Nm (7.5 ftlb.)

Screw -2- : > Tightening torque 13 Nm (9.5 ftlb.)

Screws -3- : > Tightening torque 13 Nm (9.5 ftlb.)

Fit cable plug on the coolant regulator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant regulator housing

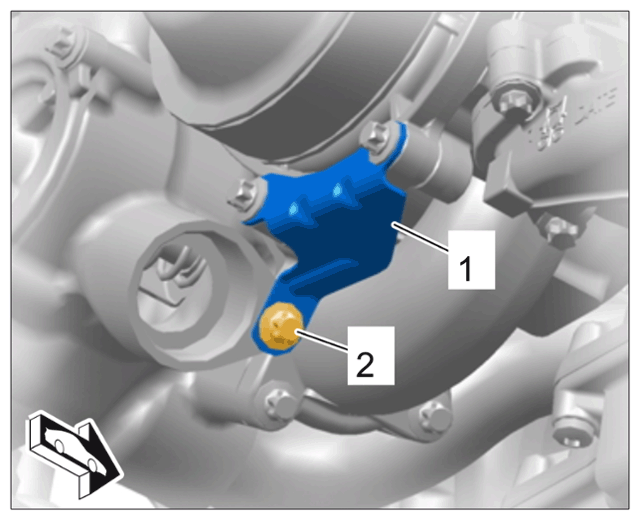

Fit and tighten screw -2- on the coolant pump holder -1- .
> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump holder

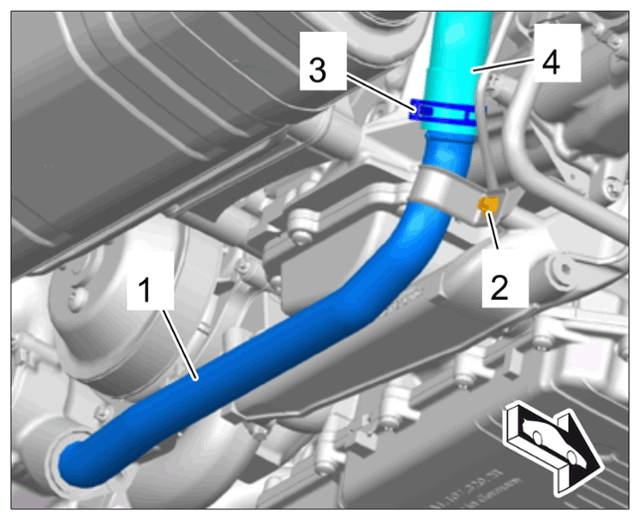

Install coolant pipe -1- .
Fit new O-rings.

Install coolant pipe -1- on the coolant regulator housing.

Connect coolant hose -4- and close the spring band clamp -3- .

Fit and tighten screw -2- .

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower coolant pipe
