Loosen additional coolant pump with holder.Disconnect cable plug -1-
.
Disconnect coolant hoses.
Loosen screw -2-
on the holder.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

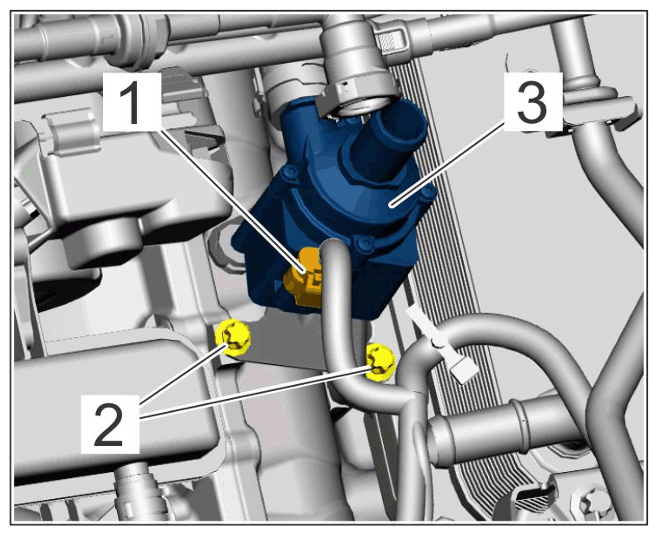

Additional coolant pump castor turbocharger
| 1 |
Cable plug for additional coolant pump |
| 2 |
Holder > Tightening torque holder 13 Nm (9.6 ftlb.) |
| 3 |
Additional coolant pump |
