Removing Reservoir

WARNING: Caustic fluids
  • Danger of chemical burns

    → Wear personal protective gear.

    → Ensure that there is good ventilation.

    → Avoid contact with caustic fluid.

    → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

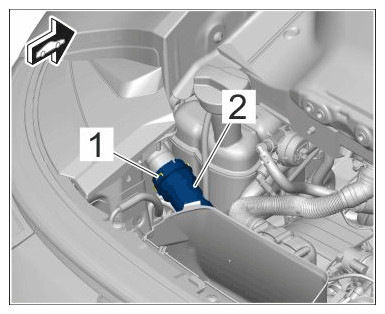

  1. Disconnect pressure hose.

    Loosen spring clamp -1-  and pull off pressure hose -2-  .

    G15485003Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure hose

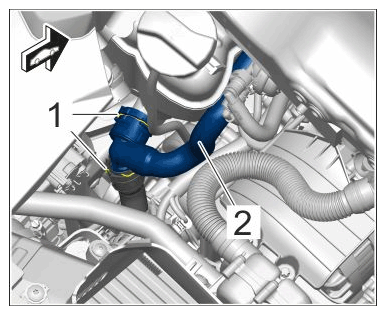

  2. Disconnect coolant hose on the reservoir.

    Loosen spring clamps -1 and pull off coolant hose -2-  .

    G15485004Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant hoses on reservoir

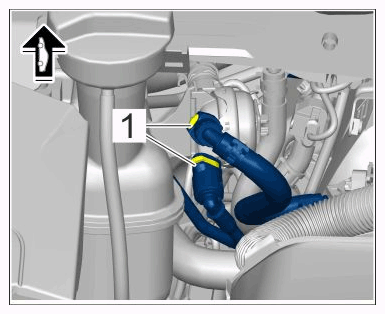

  3. Disconnect breather hoses.

    Release and disconnect breather hoses -2-  .

    G15485005Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Breather hoses

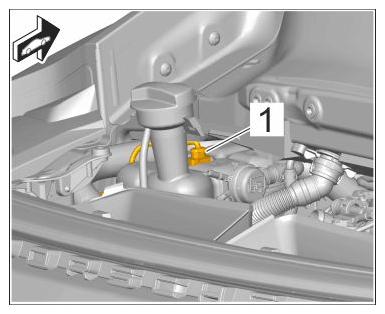

  4. Pull off cable plugs -1-  .
    G15485006Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connector for engine coolant level sensor

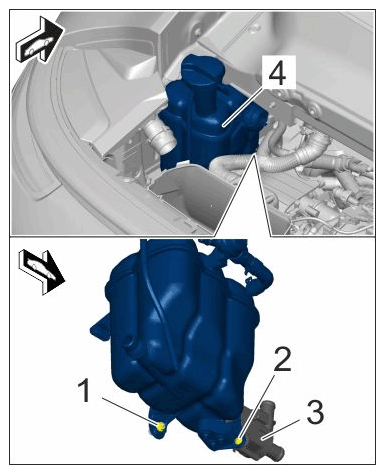

  5. Remove the reservoir -4-  .

    Unscrew nut -1-  and screw -2-  .

    Unclip additional coolant pump -3-  from the reservoir -4-  .

    Guide the reservoir -4-  out of the engine compartment.

    G15485007Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for reservoir
