Removing Cooling-Air Flaps

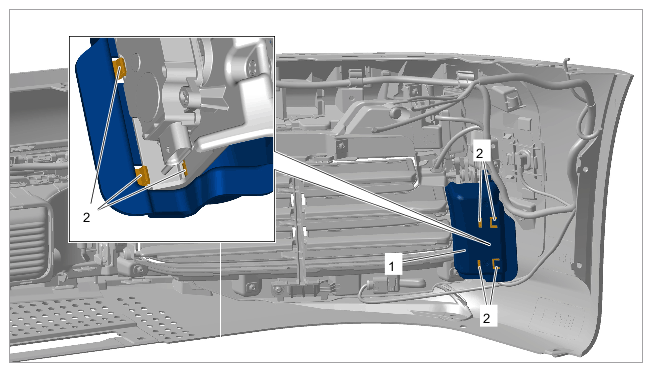

  1. Remove cover -1-  .

    Release retaining lugs -2-  .

    G15484975Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Servo motor cover

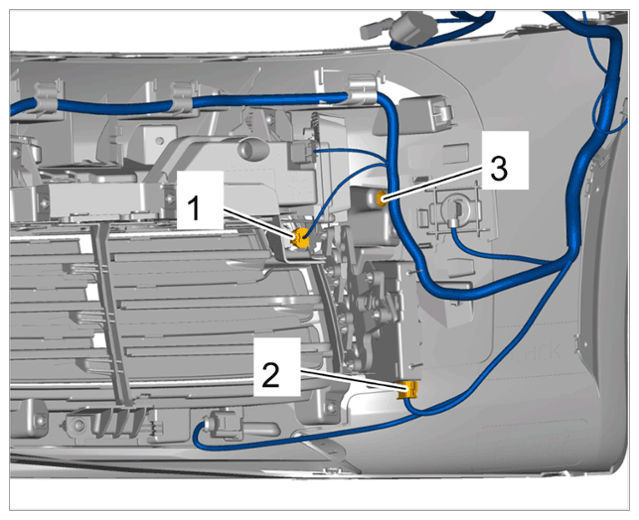

  2. Disconnect electric line.

    Release and disconnect cable plug -1 and 2-  .

    Unclip clip -3-  .

    G15484976Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable plugs

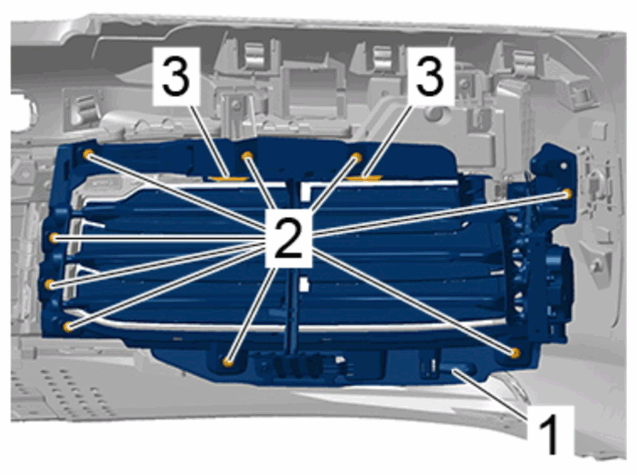

  3. Remove cooling-air flaps -1-  .

    Unscrew screws on retaining frame -2-  .

    Release retaining lugs -3-  .

    Remove cooling-air flaps -1-  .

    G15484977Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cooling-air flaps
