Removing Motor For Cooling-Air Flaps

  1. Remove motor for cooling-air flaps -1-  .

    Unscrew and remove screws -2-  .

    Remove motor for cooling-air flaps -1-  .

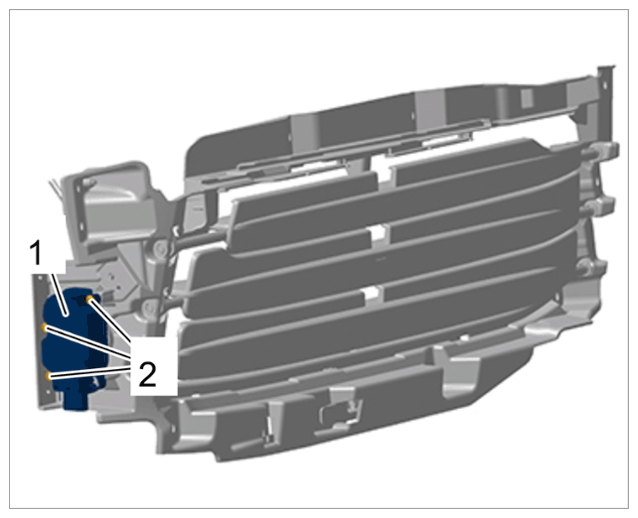

    G15484973Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Motor for cooling-air flaps
