Removing Air Guide For Radiator

  1. Remove air guide for radiator -1-  .

    Loosen retaining lugs -2-  .

    Unclip clip -3-  in -direction of arrow-  .

    Remove air guide for radiator -1-  .

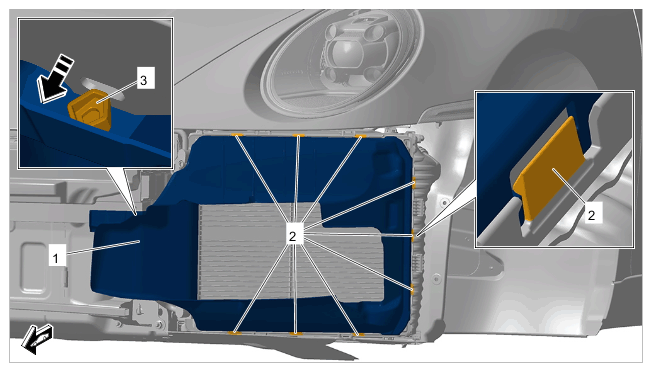

    G15484971Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air guide for radiator
