Removing Electric Fan

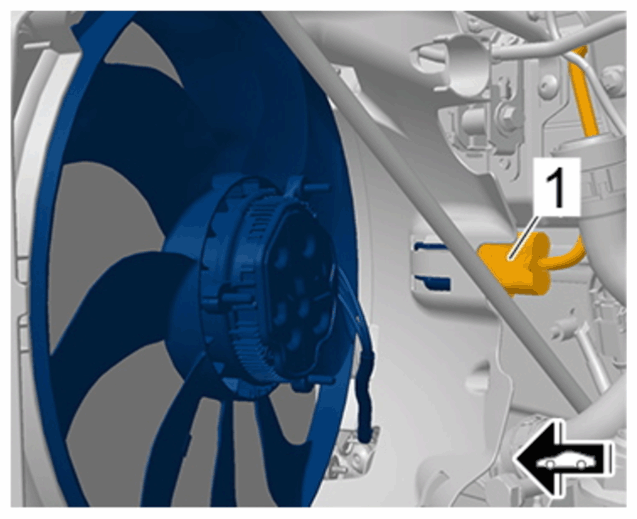

Release and disconnect cable plug -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plug for electric fan

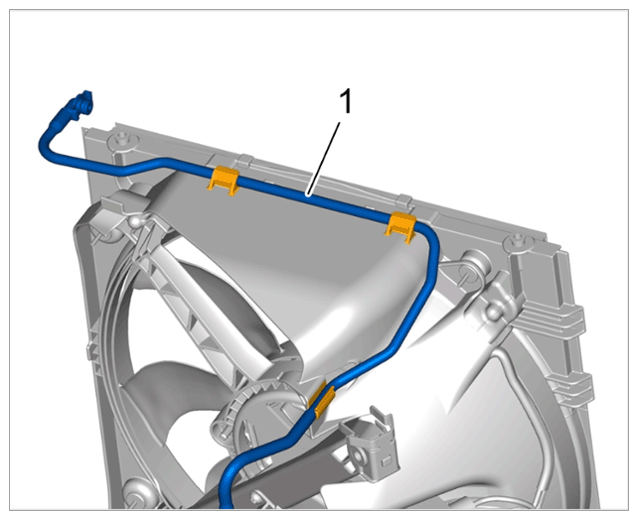

Unclip vent line -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line

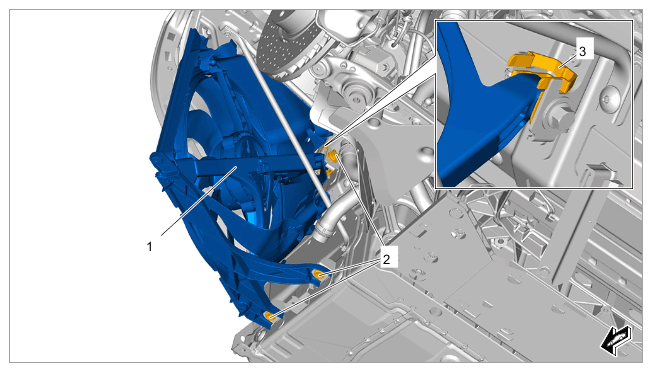

Remove cooling fan housing -1- .
Unscrew and remove screws -2- .

Press locking lugs on the clip -3- together and remove cooling fan housing -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cooling fan housing and air guide

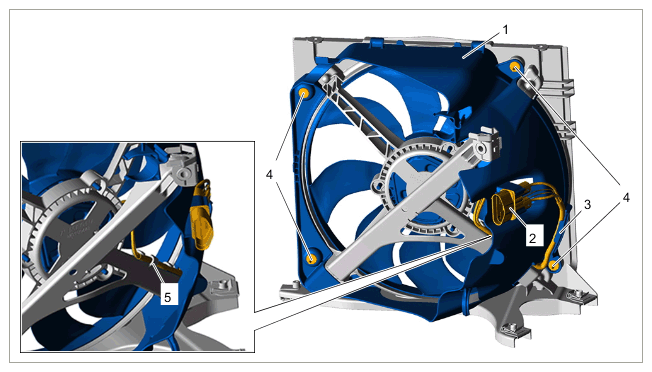

Remove air guide -1- .
Unclip cable plug -2- from air guide -1- .

Disconnect electric line -3- from air guide -1- .

Unclip clips -4- and remove air guide -1- .

Unclip electric line -5- from cooling fan housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide on cooling fan housing

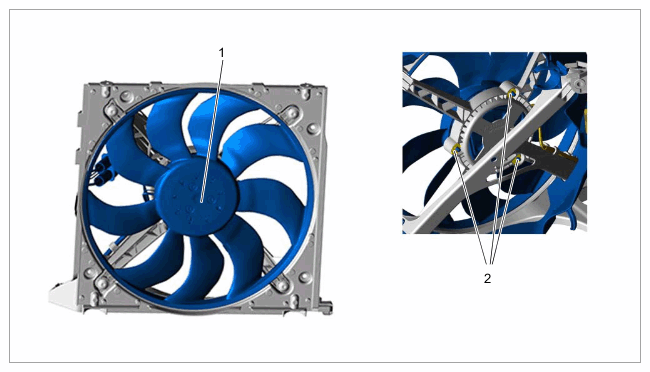

Remove electric fan -1- .
Unscrew nuts -2- .

Remove electric fan -1- by pulling it forward.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric fan
