Removing Boost Pressure Sensor

  1. Remove boost pressure sensor -1-  .

    Release and disconnect cable plug -3-  .

    Unscrew screw -2-  and remove boost pressure sensor -1-  .

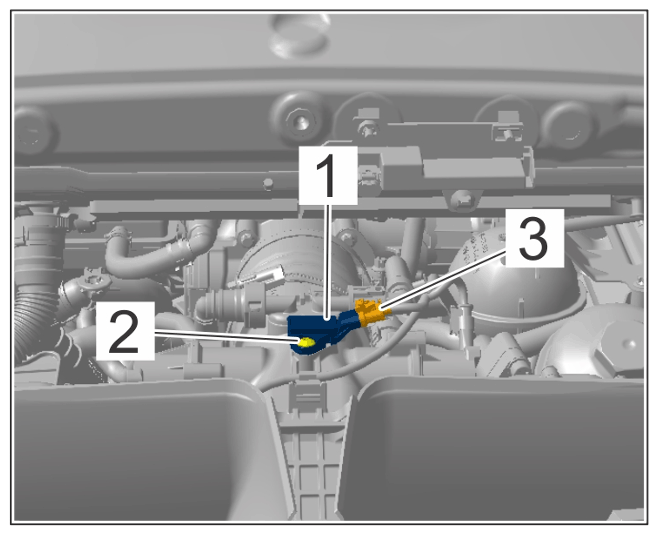

G15503530Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Boost-pressure sensor
