Removing Hose Line For Bleeding

NOTE: Mixing fluids

Risk of damage to components
→ Close off all openings immediately after exposing them (with adhesive tape, suitable stoppers).

Information

Open connections and lines must be closed off using suitable stoppers or caps.

Information

O-rings must always be replaced.
O-rings must be coated lightly with Kluber Syntheso Glep.

Have a suitable container ready for catching engine oil.

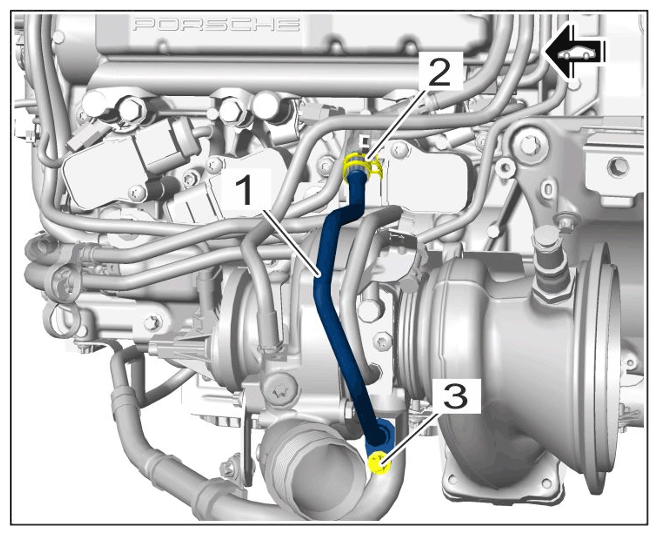

Remove left hose line for bleeding -1- .
Unscrew screw -3- .

Loosen clamp -2- and pull off hose line for bleeding -1- .

Replace O-ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose line for bleeding, left

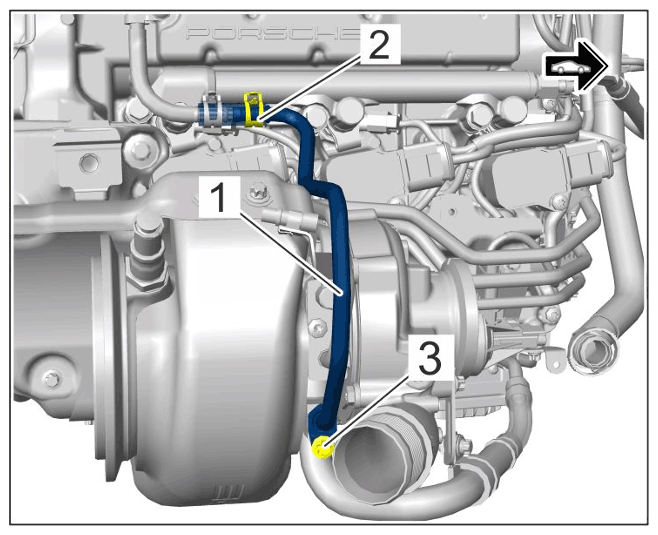

Remove right hose line for bleeding -1- .
Unscrew screw -3- .

Loosen clamp -2- and pull off hose line for bleeding -1- .

Replace O-ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose line for bleeding, right
