Component Information

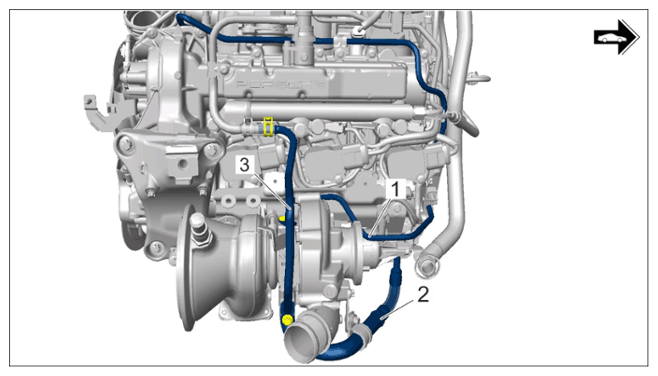

Fig 1: Right Turbocharger Components Location

G15503523

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component information for right turbocharger

1	Oil supply line
2	Oil return line
3	Hose line for bleeding

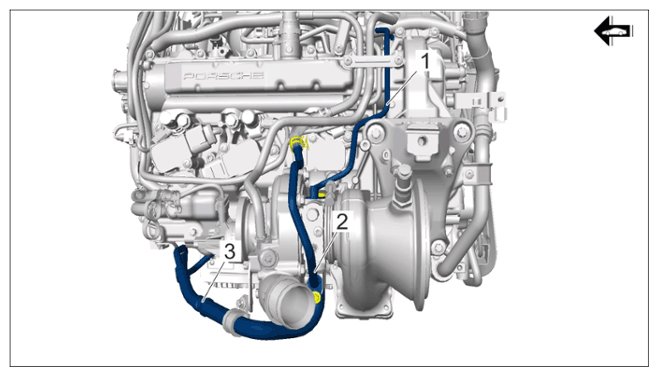

Fig 2: Left Turbocharger Components Location

G15503524

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component information - left turbocharger

1	Oil supply line
2	Hose line for bleeding
3	Oil return line
