Removing Pressure Pipe

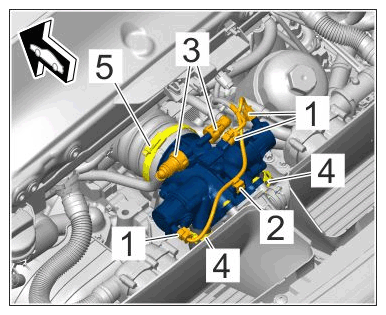

Release and disconnect cable plug -1-  and loosen clip -2-  .

Release and pull off joiner -3-  .

Loosen hose clamp -5-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Add-on parts for pressure pipe

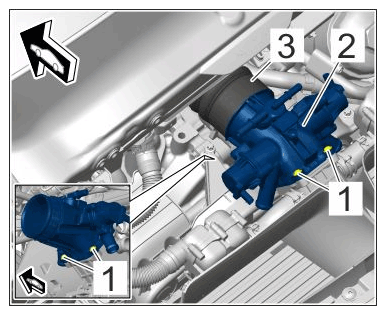

Unscrew and remove screws -1-  .

Disconnect pressure pipe -2-  from hose -3-  and guide it out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mount for pressure pipe
