Installing Pressure Pipe

Disconnect pressure pipe -2-  from hose -3-  and guide it out.

Fit and tighten screws -1-  .

> Tightening torque 6 Nm (4.5 ftlb.) - 0.3 Nm (0.2 ftlb.) + 0.5 Nm (0.35 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

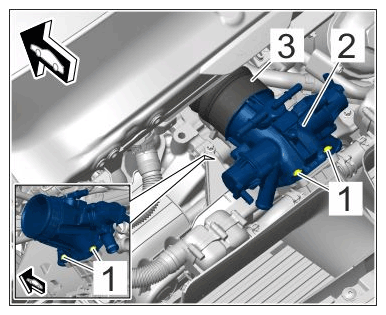

Mount for pressure pipe

Secure hose clamp -5-  .

> Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

Push on joiner -3-  .

Plug in cable plug -1-  and secure clip -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

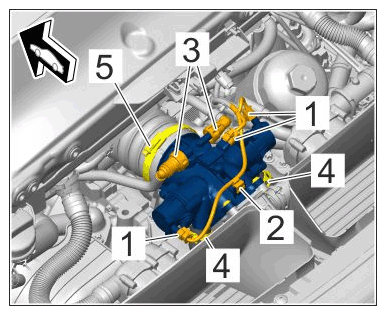

Add-on parts for pressure pipe
