Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Screws securing side pressure pipe to air cleaner housing Item 3 Tightening torque 2.2 Nm (1.6 ftlb.)

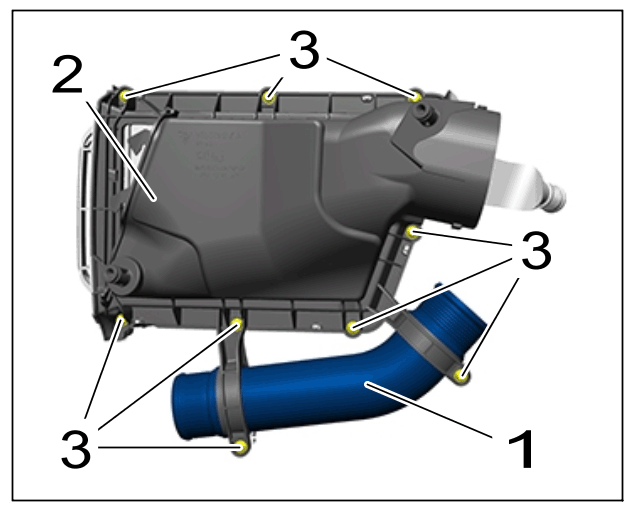

G15503491Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe (at the side)
