Installing Pressure Pipe (At The Side)

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

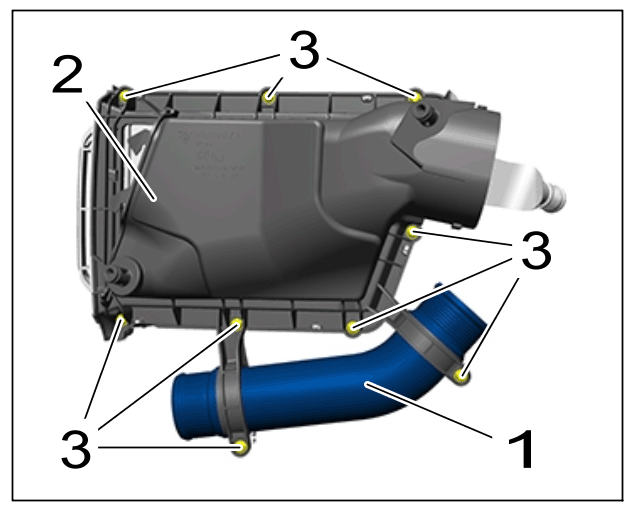

1. Install pressure pipe (at the side) -1-  .

   Position pressure pipe (at the side) -1-  .

   Position lower part of air cleaner -2-  and fit and tighten screws -3-  .

   > Tightening torque 2.2 Nm (1.6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressure pipe (at the side)
