Finishing Work On Moulded Hose On Charge-Air Cooler

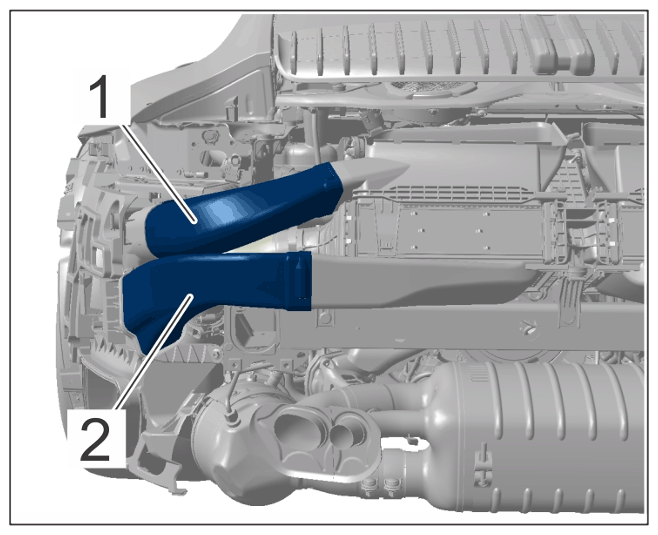

  1. Installing air guides -1-  and -2-  .
    G15503484Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Charge-air cooler air guides

  2. Install rear apron.

    635519 REMOVING AND INSTALLING REAR APRON
