Remove Moulded Hose From Charge-Air Cooler

  1. Remove moulded hose -1-  .

    Undo screw-type clamps -2-  and remove moulded hose -1-  .

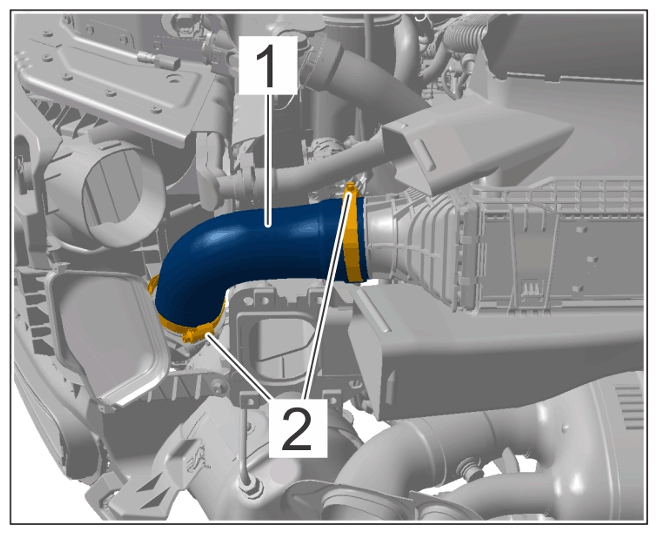

    G15503480Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moulded hose on charge-air cooler
