Preliminary Work On Moulded Hose On Charge-Air Cooler

1. Remove rear apron.

   635519 REMOVING AND INSTALLING REAR APRON

2. Remove air guides -1-  and -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

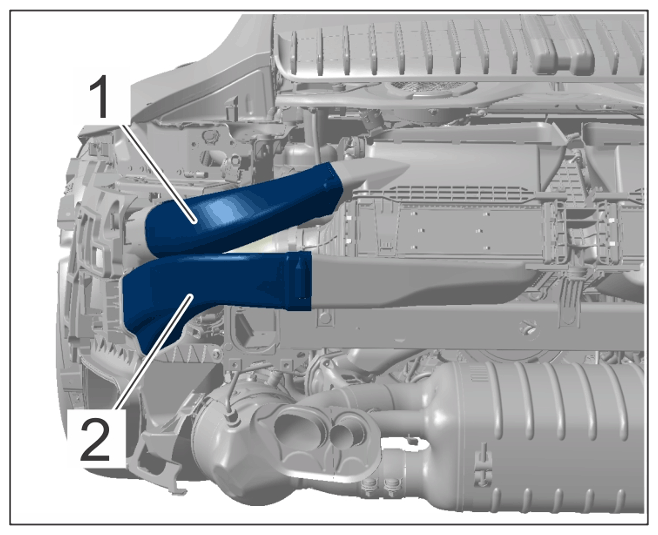

Charge-air cooler air guides
