Install Moulded Hose On Turbocharger

1. Installing -1-  moulded hose.

   Coat inside of moulded hose with Kluberplus gel.

   Tightening torque for screw-type clamps -2-  :

   > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

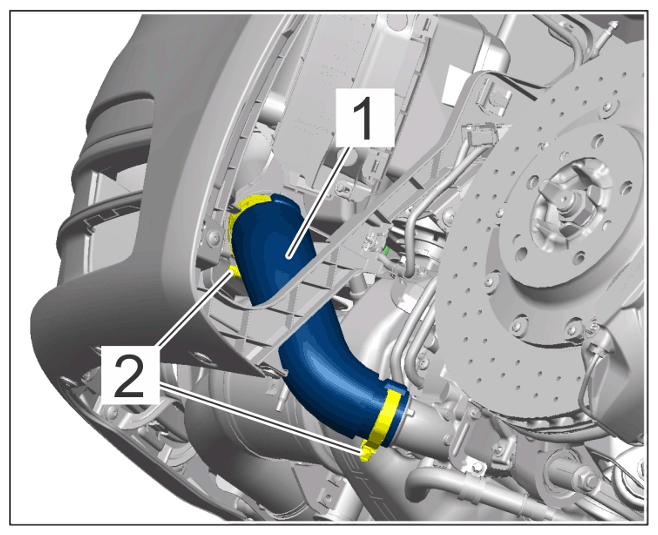

Moulded hose on turbocharger
