21 Exhaust Gas Turbocharging 3.0L (Eng Code MDK.Ca) -- 992 - 911 CARRERA (992)
>>
WM, 213519 Removing And Installing Coolant Line
>>
Information
>>
Coolant Lines For Turbocharger
Coolant Lines For Turbocharger

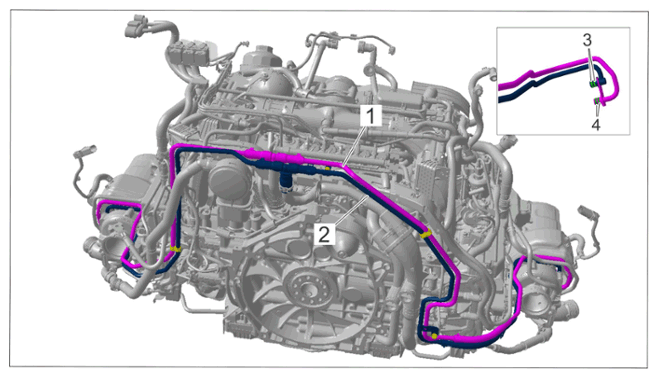

Fig 1: Coolant Lines For Turbocharger Components Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coolant lines for turbocharger
1
Coolant supply line
2
Coolant return line
3
O-rings/replace
4
O-rings/replace
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
