Removing Turbocharger

CAUTION: Hot components

Risk of burns
→ Let hot components cool down.

→ Wear personal protective gear.

WARNING: Hot fluid

Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

NOTE: Mixing fluids

Risk of damage to components
→ Close off all openings immediately after exposing them (with adhesive tape, suitable stoppers).

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Information

Replace O-rings on the cooling system.
Clean plug connection and coolant hoses before assembly.
Remove stoppers before fitting the coolant lines and hoses.

Information

O-rings must always be replaced.
O-rings must be coated lightly with Kluber Syntheso Glep.

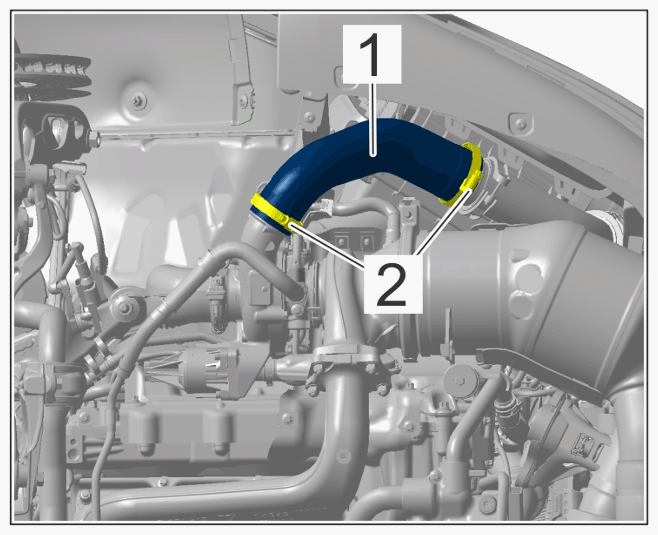

Remove pressure hose -1- from turbocharger.
Loosen screw-type clamps -2- .

Pull off pressure hose -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure hose for turbocharger

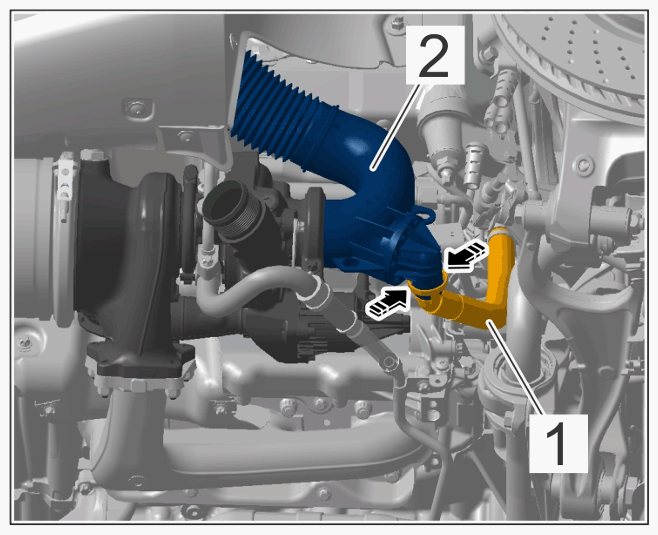

Right side only: Disconnect crankcase ventilation line -1- from the intake manifold -2- .
Disconnect connection -Arrows- and remove.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankcase ventilation line intake port

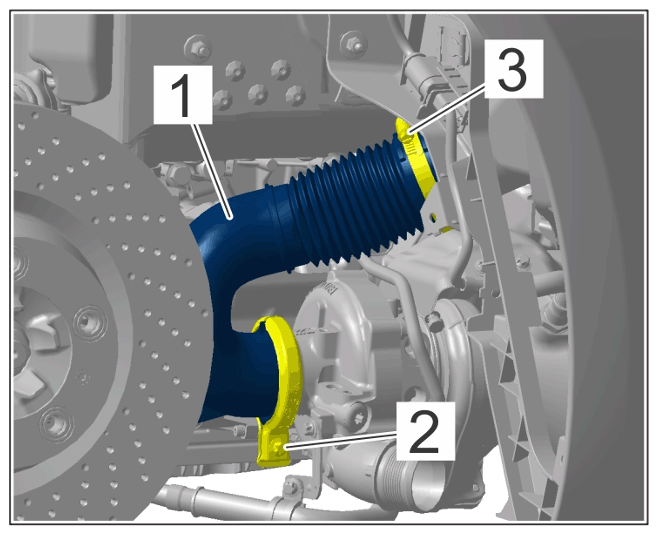

Remove intake pipe -1- at the turbocharger.
Undo -2- V-band clip screw.

Loosen screw-type clamp -3- .

Remove -1- intake port.

Replace V-band clip for installation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake pipe on turbocharger

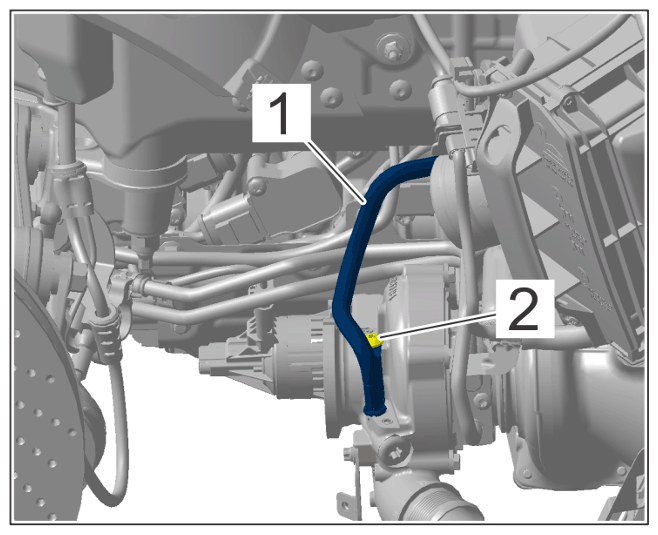

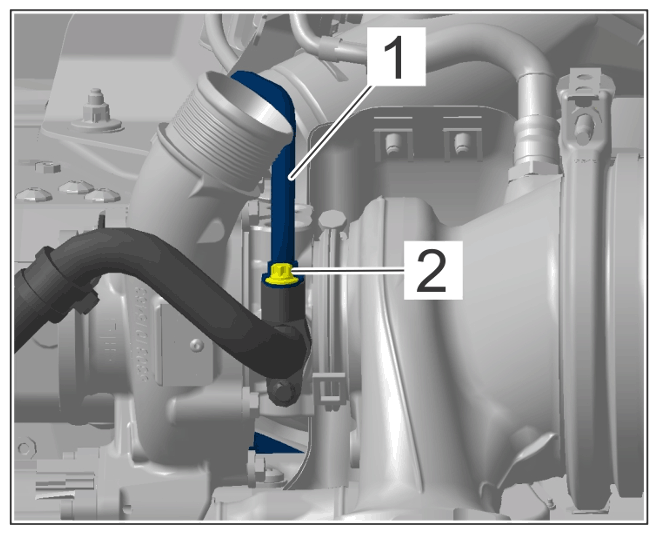

Disconnect vent line -1- .
Unscrew screw -2- .

Disconnect vent line -1- .

Collect emerging oil.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger vent line

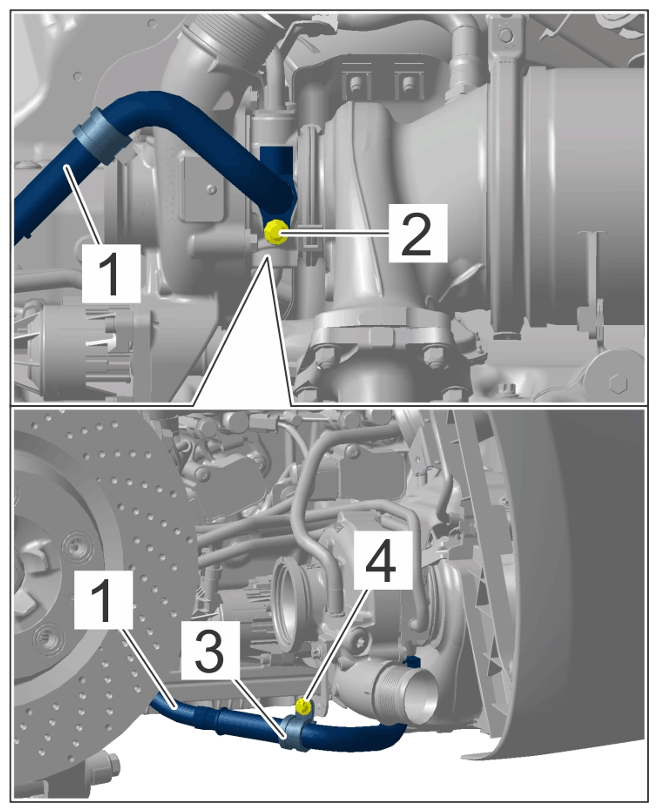

Disconnect oil line (intake side) -1- .
Unscrew screw -2- .

Release support -3- by unscrewing screw -4- .

Remove oil line -1- .

Collect emerging oil.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil line (intake side)
Disconnect tank vent line -1- .
Unscrew screw -2- .

Remove tank ventilation line -1- by moving it upwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger tank vent line

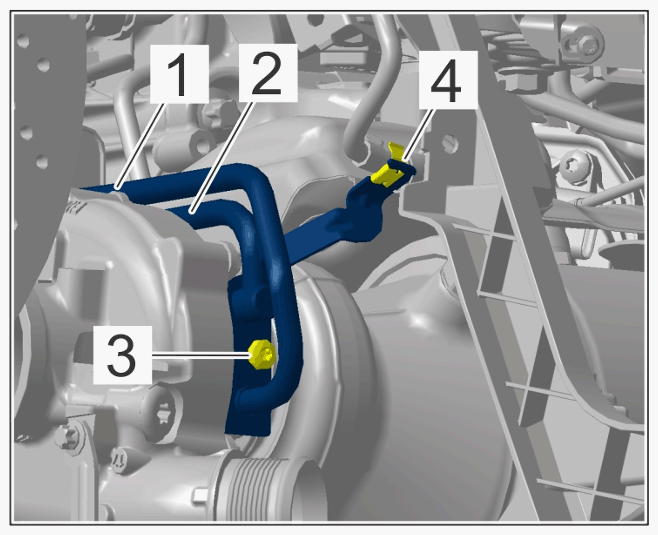

Disconnect coolant lines -1- and -2- .
Unscrew screw -3- .

Loosen holder -4- .

Pull off coolant lines -1- and -2- .

Collect emerging coolant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant lines for turbocharger

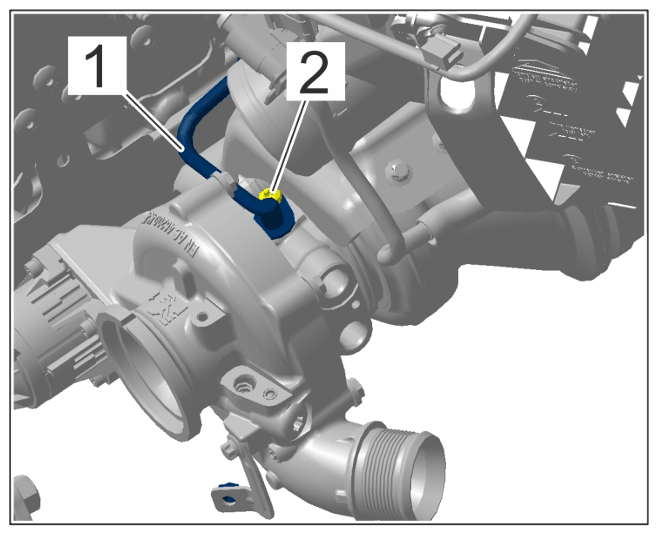

Disconnect oil line (pressure side) -1- .
Unscrew screw -2- .

Remove oil line -1- .

Collect emerging oil.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil line (pressure side)

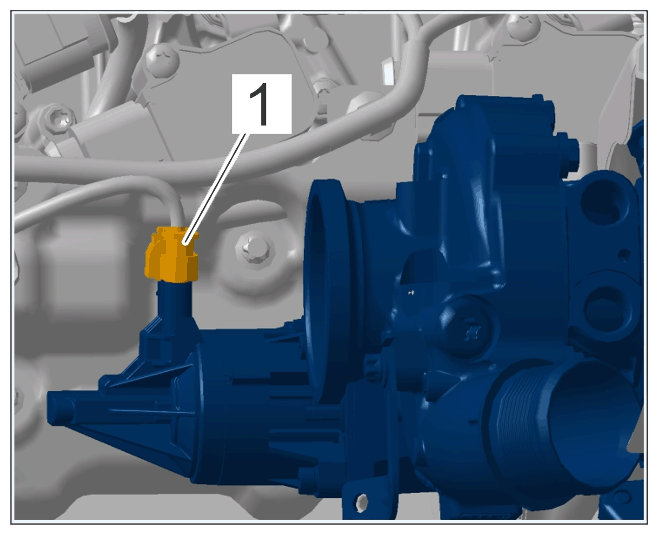

Release cable plug -1- on electronic adjuster and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plugs for electronic adjuster

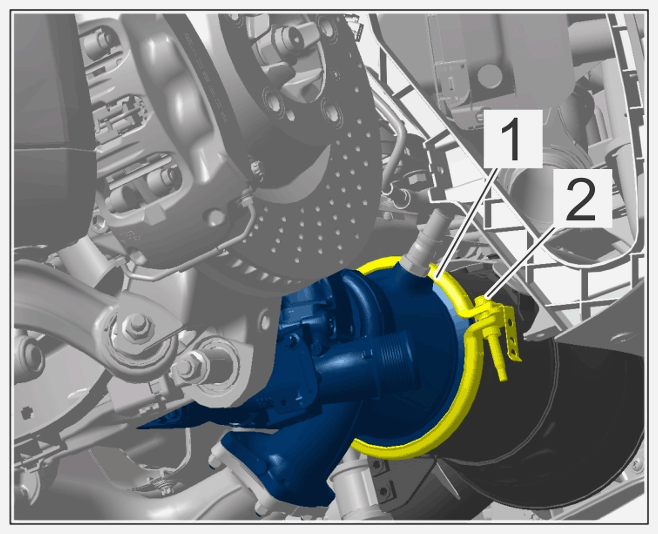

Remove V-band clip -1- on the catalytic converter.
Unscrew screw -2- .

Remove V-band clip -1- .

Replace V-band clip for installation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

V-band clip for catalytic converter/turbocharger

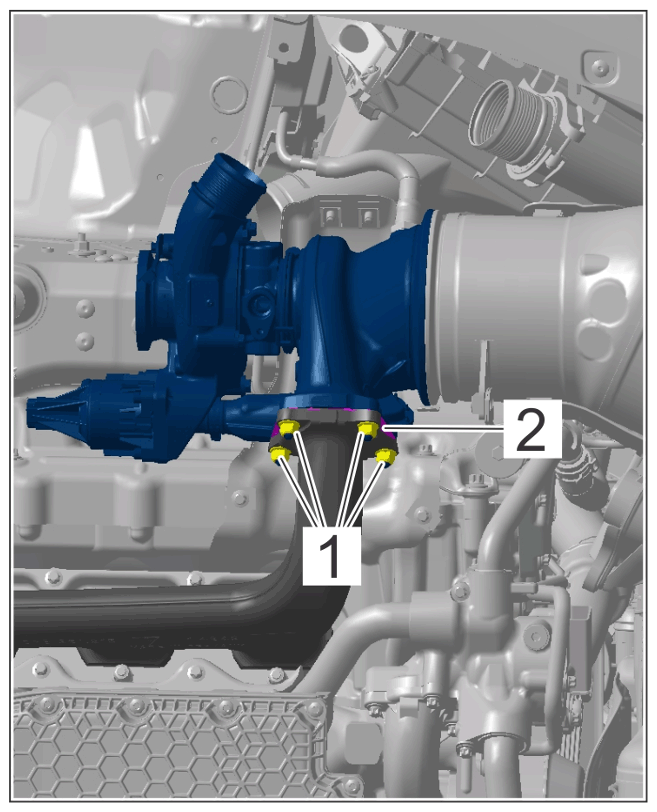

Disconnect turbocharger from the exhaust manifold.
Unscrew nuts -1- .

Remove turbocharger by pulling it downwards.

Replace seal -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger on exhaust manifold

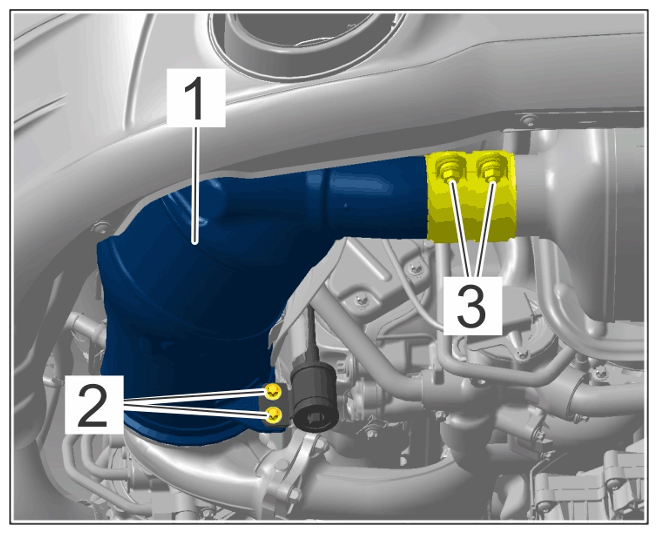

Loosen catalytic converter -1- .
Unscrew screws -2- on the holder.

Undo nuts -3- on the clamping sleeve.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Catalytic converter
