Installing Turbocharger

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Information

• Replace O-rings on the cooling system.
• Clean plug connection and coolant hoses before assembly.
• Remove stoppers before fitting the coolant lines and hoses.

Information

• O-rings must always be replaced.
• O-rings must be coated lightly with Kluber Syntheso Glep.

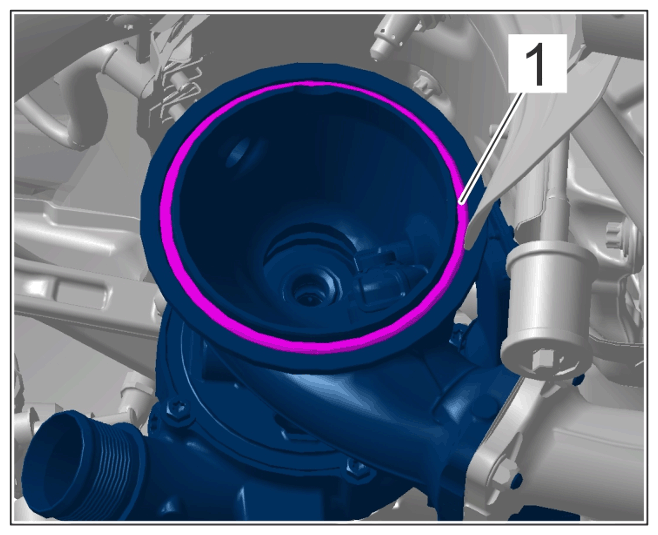

1. Replace seal -1-  at the connection point of the turbocharger and the catalytic converter.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Turbocharger/catalytic converter seal

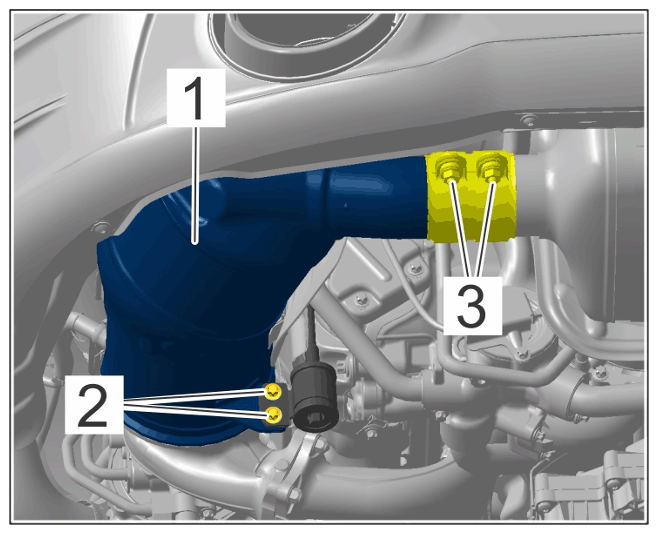

2. Secure the catalytic converter -1-  .

   Position the catalytic converter and clamping sleeve in installation position.

   Tighten screws -2-  on the support.

   Tightening torque: > Tightening torque 23 Nm (17 ftlb.) +/- 10 %

   Tighten nuts -3-  on the clamping sleeve.

   Tightening torque: > Tightening torque 30 Nm (22 ftlb.) +/- 10 %

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Catalytic converter

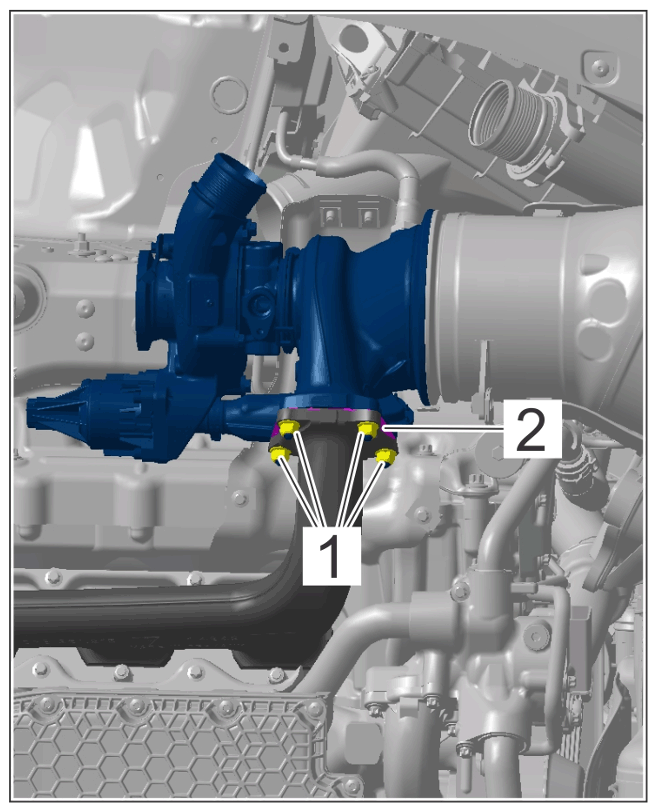

3. Fix turbocharger to the exhaust manifold.

   Insert new seal -2-  .

   Coat studs with MicroGLEIT LP 475  .

   Position turbocharger in installation position.

   Tighten new nuts -1-  .

   Tightening torque: > Tightening torque 25 Nm (19 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Turbocharger on exhaust manifold

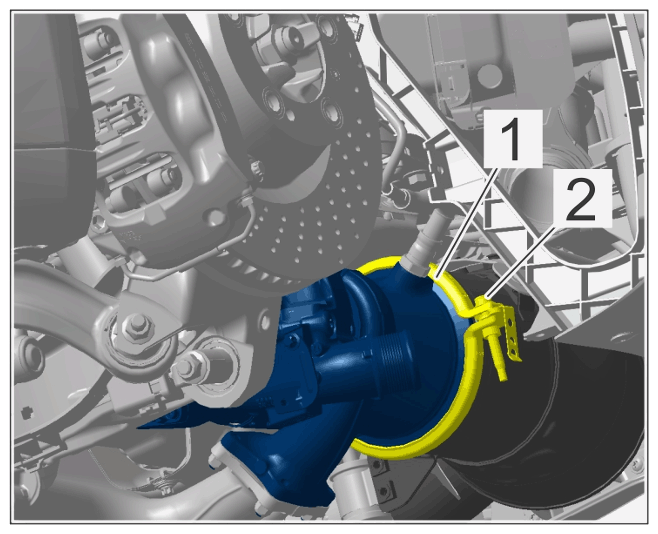

4. Attach turbocharger to the catalytic converter.

   Fit new V-band clip -1-  on the catalytic converter.

   Tighten screw -2-  .

   Tightening torque: > Tightening torque 20 Nm (15 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   V-band clip for catalytic converter/turbocharger

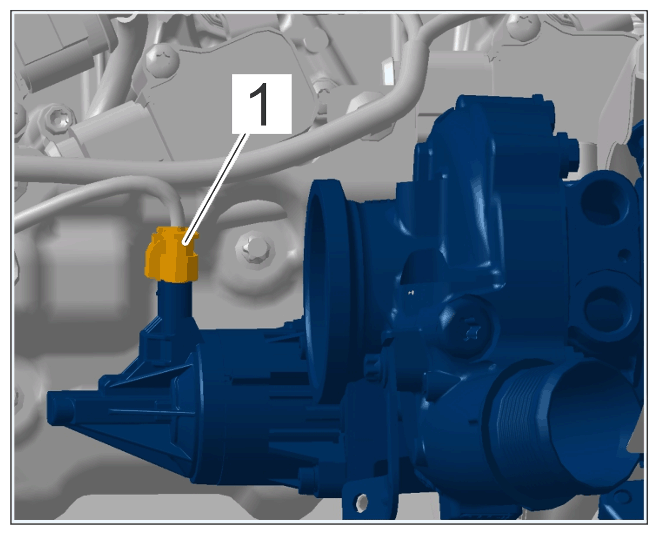

5. Connect cable plug -1-  to electronic adjuster.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable plugs for electronic adjuster

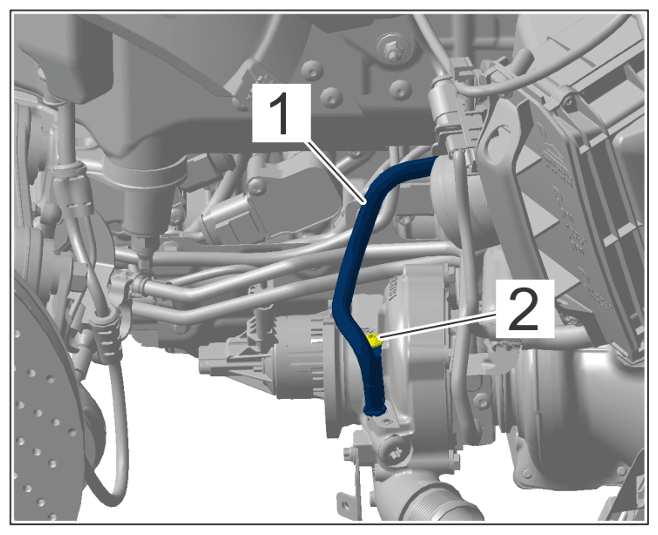

6. Secure oil line (pressure side)-1-  .

   Replace O-rings.

   Tighten screw -2-  .

   Tightening torque: > Tightening torque 10 Nm (7.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil line (pressure side)

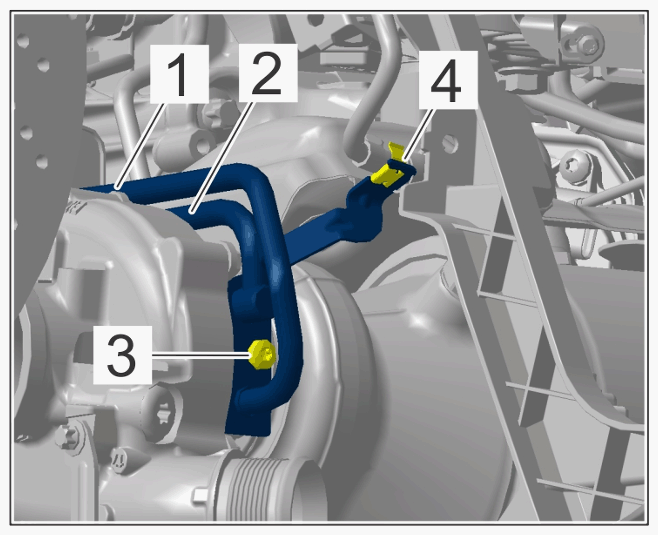

7. Secure coolant lines -1-  and -2-  .

   Replace O-rings.

   Secure holder -4-  .

   Tighten screw -3-  .

   Tightening torque: > Tightening torque 10 Nm (7.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant lines for turbocharger

8. Secure tank vent line -1-  .

   Replace O-rings.

   Tighten screw -2-  .

   Tightening torque: > Tightening torque 10 Nm (7.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Turbocharger tank vent line

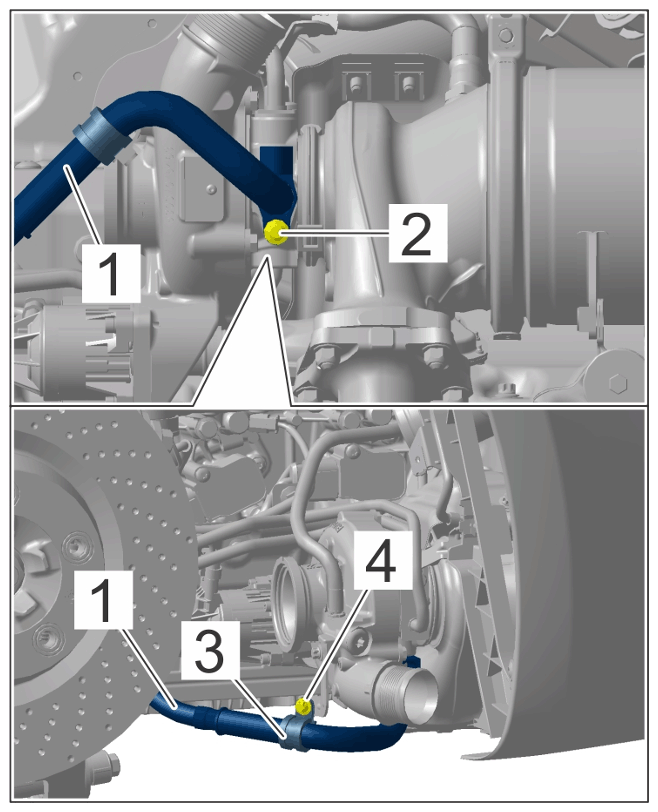

9. Disconnect oil line (intake side) -1-  .

   Replace O-rings.

   Insert oil line -1-  into the turbocharger.

   Fit screws -2-  .

   Secure support -3-  , to do this, fit a screw -4-  .

   Tighten screw -2-  .

   Tightening torque: > Tightening torque 10 Nm (7.5 ftlb.)

   Tighten screw -4-  .

   Tightening torque: > Tightening torque 10 Nm (7.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil line (intake side)

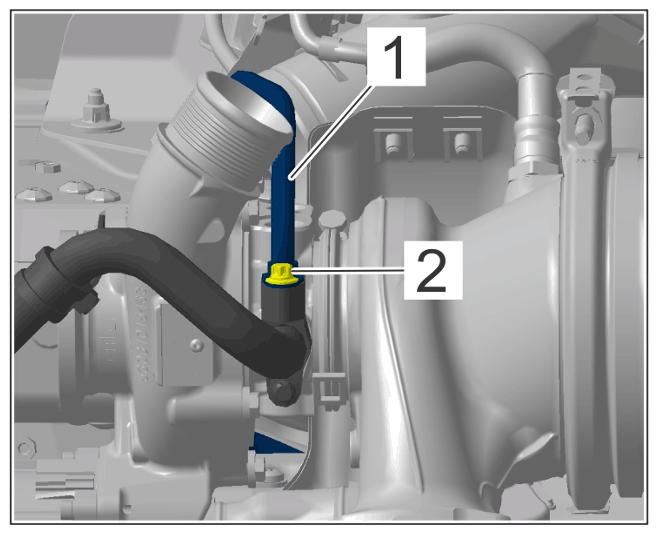

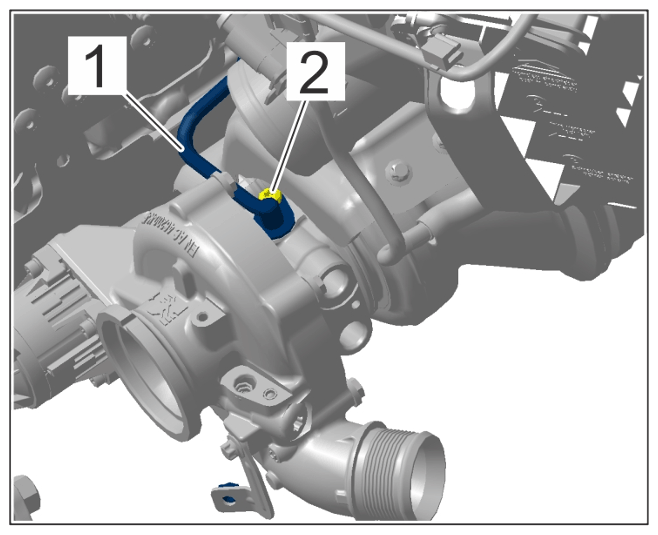

10. Secure vent line -1-  .

    Replace O-rings.

    Tighten screw -2-  .

    Tightening torque: > Tightening torque 10 Nm (7.5 ftlb.)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Turbocharger vent line

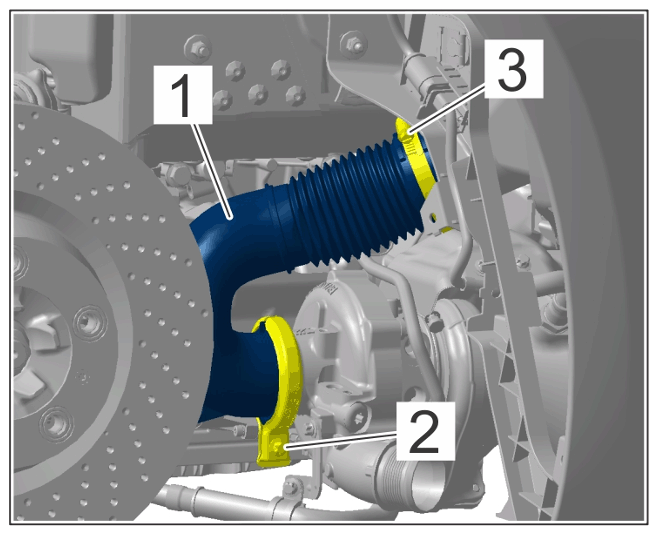

11. Fit intake line -1-  to turbocharger.

    Replace O-ring.

    Fit the new V-band clip.

    Tighten screw -2-  .

    Tightening torque: > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

    Tighten new screw-type clamp -3-  .

    Tightening torque: > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Intake pipe on turbocharger

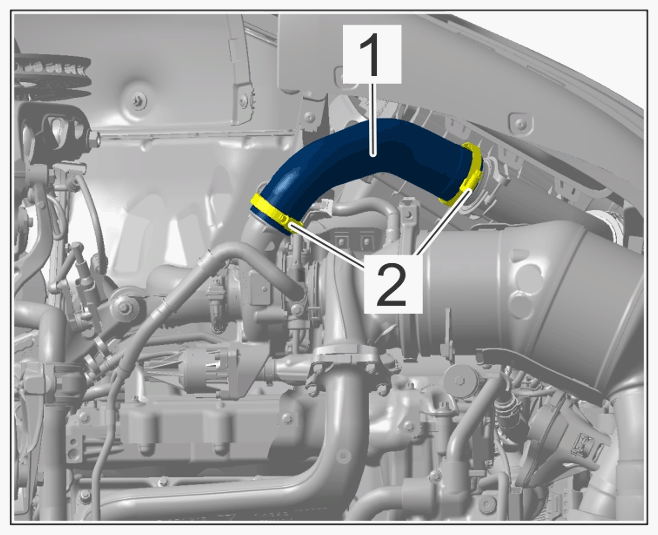

12. Fit pressure hose -1-  on turbocharger.

    Tighten screw-type clamps -2-  .

    Tightening torque: > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure hose for turbocharger
