Installing Intake Manifold

1. Insert intake manifold.

   Be careful of the groove on the turbocharger!

   Fit intake manifold on turbocharger and air intake.

   Connect vent line at the right-hand side.

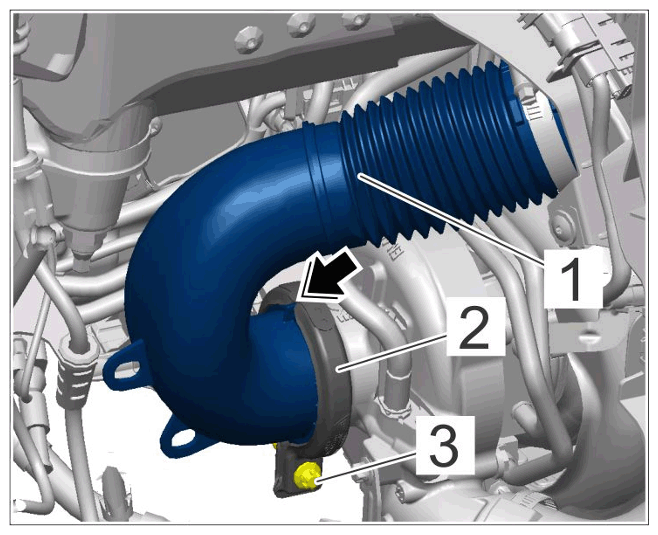

2. Install new V-band clamp -2-  at the bottom.

   Make sure that it is installed at the correct position! Position gap in the clamp on the fixing nipple on the intake manifold -arrow-  .

   Tighten screw -3-  .

   > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing V-band clamp

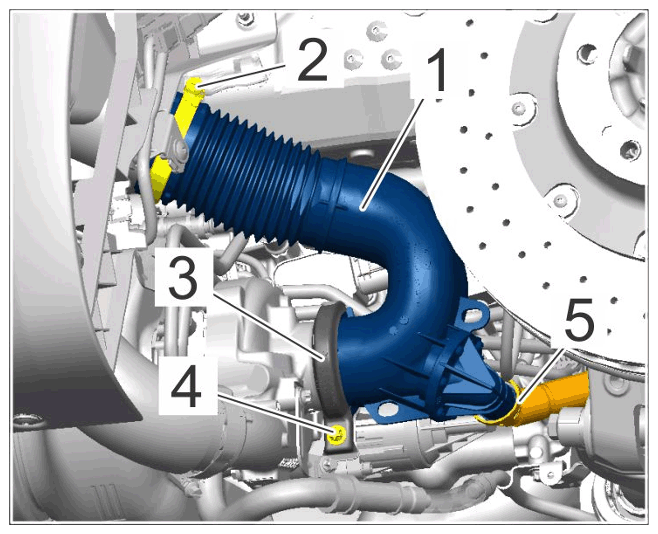

3. Align and tighten screw-type clamp -2-  at the top.

   > Tightening torque 2.5 Nm (1.75 ftlb.) + 0.5 Nm (0.3 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe on turbocharger, right
